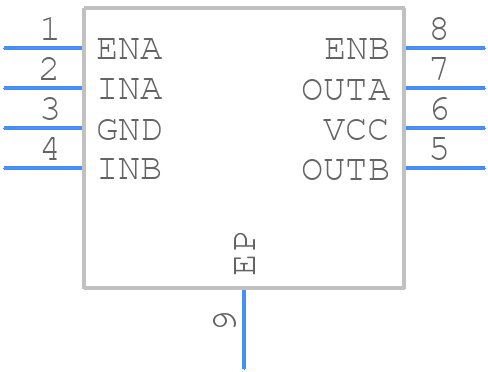

IX4340UETR - LITTELFUSE

IX4340UETR Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  For optimal thermal performance, it is recommended to use a thermal pad on the bottom of the device and connect it to a large copper area on the PCB. This helps to dissipate heat efficiently. Additionally, keeping the PCB traces and vias away from the thermal pad can reduce thermal resistance.
• How do I ensure reliable operation in high-temperature environments?
  To ensure reliable operation in high-temperature environments, it is essential to follow the recommended derating curves for the device. Additionally, consider using a heat sink or thermal interface material to reduce the junction temperature. It is also crucial to ensure good airflow and avoid thermal hotspots.
• What are the ESD protection and handling precautions for this device?
  The IX4340UETR is a sensitive device and requires proper ESD protection during handling and assembly. It is recommended to use an ESD wrist strap, mat, or workstation to prevent static damage. Additionally, avoid touching the device's pins or handling it by the leads to prevent ESD damage.
• Can I use this device in a high-reliability or safety-critical application?
  The IX4340UETR is a commercial-grade device, and its use in high-reliability or safety-critical applications may require additional testing and validation. It is recommended to consult with Littelfuse Inc or a qualified reliability engineer to determine the device's suitability for such applications.
• What are the recommended soldering and assembly techniques for this device?
  The IX4340UETR is a surface-mount device and requires proper soldering and assembly techniques to ensure reliable operation. It is recommended to follow the recommended soldering profile and use a solder with a high melting point. Additionally, ensure that the device is properly aligned and seated on the PCB to prevent mechanical stress.
