Part Image

IX4352NEAU - LITTELFUSE

Description: 9A, SiC MOSFET DRIVER, 16L SOIC, NARROW | Series: AEC-Q100 Qualified Low-Side SiC Drivers AEC-Q100 qualified Separate 9A peak source and sink outputs Operating Voltage Range: VDD - VSS up to 35 V AEC-Q100 Operating Temperature Grade 1: −40 °C to +125 °C AEC-Q100 Human Body Model (HBM) ESD Classification 2: ±2kV Internal charge pump regulator for selectable negative gate drive bias Desaturation detection with soft shutdown sink driver TTL and CMOS compatible input Under Voltage lockout (UVLO) Th

Download IX4352NEAU Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this IX4352NEAU model

Email notifications will be applied after download.

Send part feedback

Symbol

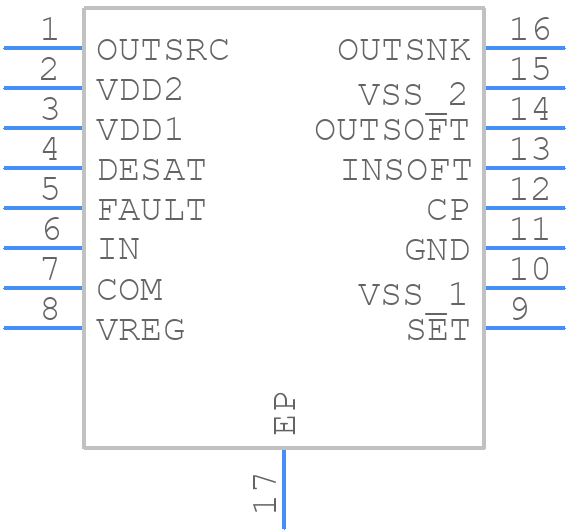

IX4352NEAU - LITTELFUSE - PCB symbol

PCB Footprints

IX4352NEAU - LITTELFUSE PCB footprint - Small Outline Packages - Small Outline Packages - 16-Pin Narrow SOIC

3D Models

IX4352NEAU - LITTELFUSE - 3D model - Small Outline Packages - 16-Pin Narrow SOIC

Datasheet Download Datasheet
Stock & Prices Price & Stock for IX4352NEAU
Part Number IX4352NEAU
Manufacturer LITTELFUSE
Pin Count 17
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 16-Pin Narrow SOIC
Released Date Sep 9, 2025
Last Modified Date Dec 27, 2025 12:36 PM UTC
Pinout / Pin List Click Here (Member Only)

IX4352NEAU Details

Manufacturer Part Number:
IX4352NEAU
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Littelfuse Inc
YTEOL:
7
Interface IC Type:
BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

IX4352NEAU Overview

Use the download button to access the IX4352NEAU schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like IX435, or try a keyword search, such as MOSFET Drivers
