The recommended PCB layout for optimal thermal performance involves placing a thermal pad on the bottom of the device, using a minimum of 2 oz copper thickness, and ensuring good thermal conduction to the surrounding PCB material. A thermal via array can also be used to improve heat dissipation.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended derating guidelines, ensure good thermal management, and consider using a heat sink or thermal interface material. Additionally, the device should be operated within the specified junction temperature range.
The IX4427NTR has built-in ESD protection, but it's still important to follow standard ESD handling precautions, such as using an ESD wrist strap or mat, and storing the devices in anti-static packaging. Avoid touching the device pins or handling them in a way that could generate static electricity.
Yes, the IX4427NTR is suitable for high-reliability and automotive applications. It meets the requirements of AEC-Q101 and is designed to operate in harsh environments. However, it's essential to follow the recommended qualification and testing procedures to ensure the device meets the specific application requirements.
The recommended soldering conditions for the IX4427NTR include a peak temperature of 260°C, a soldering time of 10 seconds, and a soldering method that follows the IPC J-STD-020 standard. For rework, it's recommended to use a low-temperature soldering iron and follow the manufacturer's rework guidelines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IX4427NTR Overview

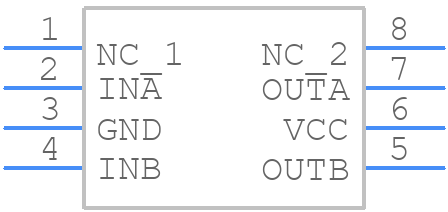

Use the download button to access the IX4427NTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IX442,
or try a keyword search, such as MOSFET Drivers
