IXDD604SIA - LITTELFUSE

Description: Gate Drivers 4A Dual Low-Side Ultrafast Mosfet DRV

Download IXDD604SIA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

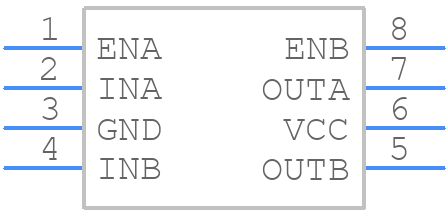

IXDD604SIA - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints
IXDD604SIA - LITTELFUSE PCB footprint - Other - Other - 8-Pin SOIC (N-PACKAGE)
click to zoom
3D Models
IXDD604SIA - LITTELFUSE - 3D model - Other - 8-Pin SOIC (N-PACKAGE)
click to zoom

IXDD604SIA Details

  • Manufacturer Part Number:

    IXDD604SIA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    8.1

  • High Side Driver:

    NO

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    35 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    18 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.065 µs

  • Turn-on Time:

    0.065 µs

  • Width:

    3.9 mm

IXDD604SIA Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the device should be connected to a large copper area on the PCB to dissipate heat. Multiple vias can be used to connect the thermal pad to an internal or bottom-side copper plane.
  • Ensure proper heat sinking, use a thermally conductive interface material, and consider derating the device's current rating based on the ambient temperature.
  • The device can withstand voltage transients up to 40V for a duration of 100ms, but it's recommended to use a TVS diode or other protection device to limit voltage spikes.
  • Yes, but be aware that the device's parasitic inductance and capacitance may affect high-frequency performance. Use a suitable PCB layout and consider adding decoupling capacitors to minimize ringing and oscillations.
  • The optimal gate resistor value depends on the specific application's switching frequency, voltage, and current. A general starting point is 10-20 ohms, but simulation and experimentation may be necessary to find the optimal value.
