For optimal thermal performance, it is recommended to use a thermal pad on the bottom of the device and connect it to a large copper area on the PCB. This helps to dissipate heat efficiently. Additionally, keeping the PCB traces and vias away from the thermal pad can help reduce thermal resistance.
To ensure reliable operation in high-temperature environments, it is essential to follow the recommended derating curves for the device. Additionally, consider using a heat sink or thermal interface material to reduce the junction temperature. It is also crucial to ensure good airflow and avoid thermal hotspots on the PCB.
The IXDD609PI is designed to withstand voltage transients up to 1.5 times the maximum rated voltage (VDRM) for a duration of 10 ms. However, it is recommended to consult the application notes and datasheet for specific guidance on voltage transient tolerance.
Yes, the IXDD609PI can be used in a parallel configuration to increase current handling. However, it is essential to ensure that the devices are matched in terms of their electrical characteristics and that the PCB layout is designed to minimize current imbalance and thermal mismatch between the devices.
The IXDD609PI should be stored in a dry, cool place away from direct sunlight and moisture. It is recommended to handle the devices by the body or pins, avoiding touching the leads or die. Electrostatic discharge (ESD) precautions should also be taken when handling the devices.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IXDD609PI Overview

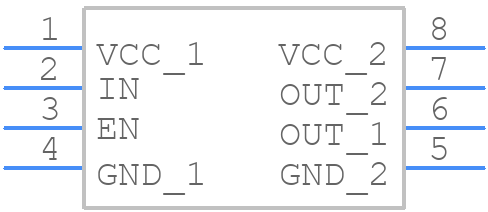

Use the download button to access the IXDD609PI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IXDD6,
or try a keyword search, such as MOSFET Drivers
