IXDD609SI - LITTELFUSE

Description: Gate Drivers 9-Ampere Low-Side Ultrafast MOSFET

Download IXDD609SI Model

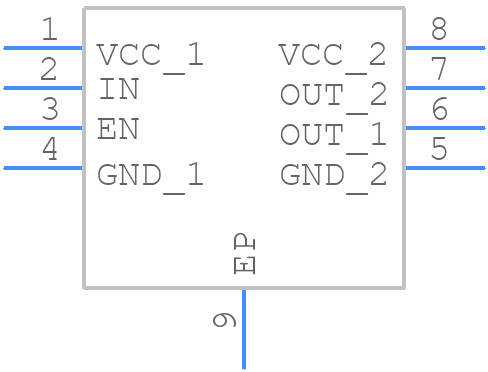

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IXDD609SI - LITTELFUSE PCB footprint - Small Outline Packages - Small Outline Packages - 5.5.2 SI (8-Pin Power SOIC with Exposed Metal Back)
click to zoom
3D Models
IXDD609SI - LITTELFUSE  - 3D model - Small Outline Packages - 5.5.2 SI (8-Pin Power SOIC with Exposed Metal Back)
click to zoom

IXDD609SI Details

  • Manufacturer Part Number:

    IXDD609SI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    8

  • High Side Driver:

    NO

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    9 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    35 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    18 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.04 µs

  • Turn-on Time:

    0.055 µs

  • Width:

    3.9 mm

IXDD609SI Frequently Asked Questions (FAQs)

  • A good PCB layout for the IXDD609SI should include a solid ground plane, wide traces for power and ground, and a thermal relief pattern under the device to facilitate heat dissipation.
  • To ensure reliable operation in high-temperature environments, ensure proper heat sinking, use a thermally conductive interface material, and follow the recommended derating guidelines for the device.
  • The IXDD609SI has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and installation to prevent damage.
  • Yes, the IXDD609SI is suitable for high-frequency switching applications, but ensure that the PCB layout and component selection are optimized for high-frequency operation to minimize losses and ringing.
  • To troubleshoot issues with the IXDD609SI, start by verifying the power supply voltage, checking for proper PCB layout and component selection, and using oscilloscope measurements to identify any anomalies.
