IXDN609PI - LITTELFUSE

Description: Gate Drivers 9-Ampere Low-Side Ultrafast MOSFET

Download IXDN609PI Model

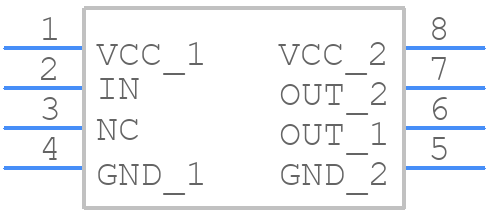

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IXDN609PI - LITTELFUSE PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8-Pin DIP
click to zoom
3D Models
IXDN609PI - LITTELFUSE  - 3D model - Dual-In-Line Packages - 8-Pin DIP
click to zoom

IXDN609PI Details

  • Manufacturer Part Number:

    IXDN609PI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    5.2

  • High Side Driver:

    NO

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.59 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    9 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.7 mm

  • Supply Voltage-Max:

    35 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    18 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.04 µs

  • Turn-on Time:

    0.055 µs

  • Width:

    7.62 mm

IXDN609PI Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for IXDN609PI is a standard SO-8 package with a minimum pad size of 1.5mm x 1.5mm and a maximum pad size of 2.5mm x 2.5mm. It's recommended to follow the PCB layout guidelines provided in the datasheet or application notes.
  • To ensure reliable operation of IXDN609PI in high-temperature environments, it's recommended to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow. Additionally, the device should be operated within its specified temperature range of -40°C to 150°C.
  • The maximum surge current that IXDN609PI can withstand is not explicitly stated in the datasheet. However, according to Littelfuse's application notes, the device can withstand surge currents up to 100A for a duration of 10ms. It's recommended to consult with Littelfuse's technical support for specific surge current requirements.
  • Yes, IXDN609PI is qualified for automotive applications and meets the requirements of AEC-Q101. However, it's recommended to consult with Littelfuse's technical support to ensure that the device meets the specific requirements of the target automotive application.
  • The recommended storage temperature range for IXDN609PI is -40°C to 150°C. It's recommended to store the devices in a dry, cool place, away from direct sunlight and moisture.
