IXGT30N120B3D1 - LITTELFUSE

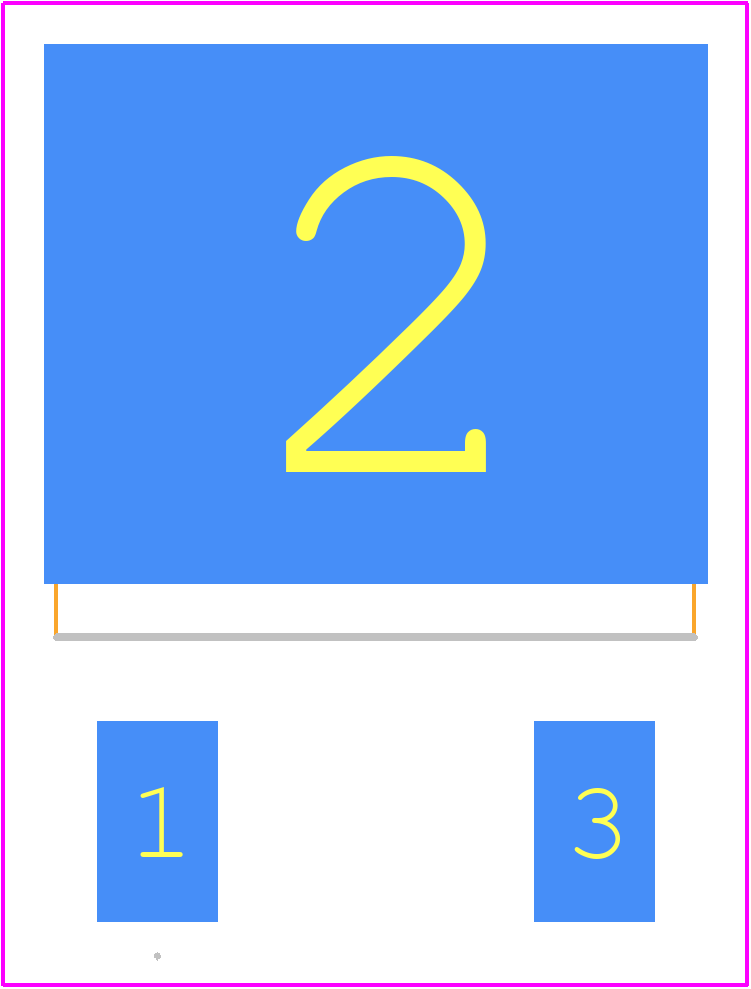

IXGT30N120B3D1 Details

• Manufacturer Part Number:

  IXGT30N120B3D1

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• Manufacturer:

  Littelfuse Inc

• YTEOL:

  5.82

• Additional Feature:

  LOW CONDUCTION LOSS

• Case Connection:

  COLLECTOR

• Collector Current-Max (IC):

  30 A

• Collector-Emitter Voltage-Max:

  1200 V

• Configuration:

  SINGLE WITH BUILT-IN DIODE

• Fall Time-Max (tf):

  380 ns

• Gate-Emitter Thr Voltage-Max:

  5 V

• Gate-Emitter Voltage-Max:

  20 V

• JEDEC-95 Code:

  TO-268AA

• JESD-30 Code:

  R-PSSO-G2

• JESD-609 Code:

  e3

• Moisture Sensitivity Level:

  1

• Number of Elements:

  1

• Number of Terminals:

  2

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Polarity/Channel Type:

  N-CHANNEL

• Power Dissipation-Max (Abs):

  300 W

• Surface Mount:

  YES

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Position:

  SINGLE

• Time@Peak Reflow Temperature-Max (s):

  10

• Transistor Application:

  POWER CONTROL

• Transistor Element Material:

  SILICON

• Turn-off Time-Max (toff):

  580 ns

• Turn-off Time-Nom (toff):

  331 ns

• Turn-on Time-Nom (ton):

  53 ns

• VCEsat-Max:

  3.5 V
