IXTT10P60 - LITTELFUSE

Description: Trans MOSFET P-CH Si 600V 10A 3-Pin(2+Tab) TO-268

Download IXTT10P60 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

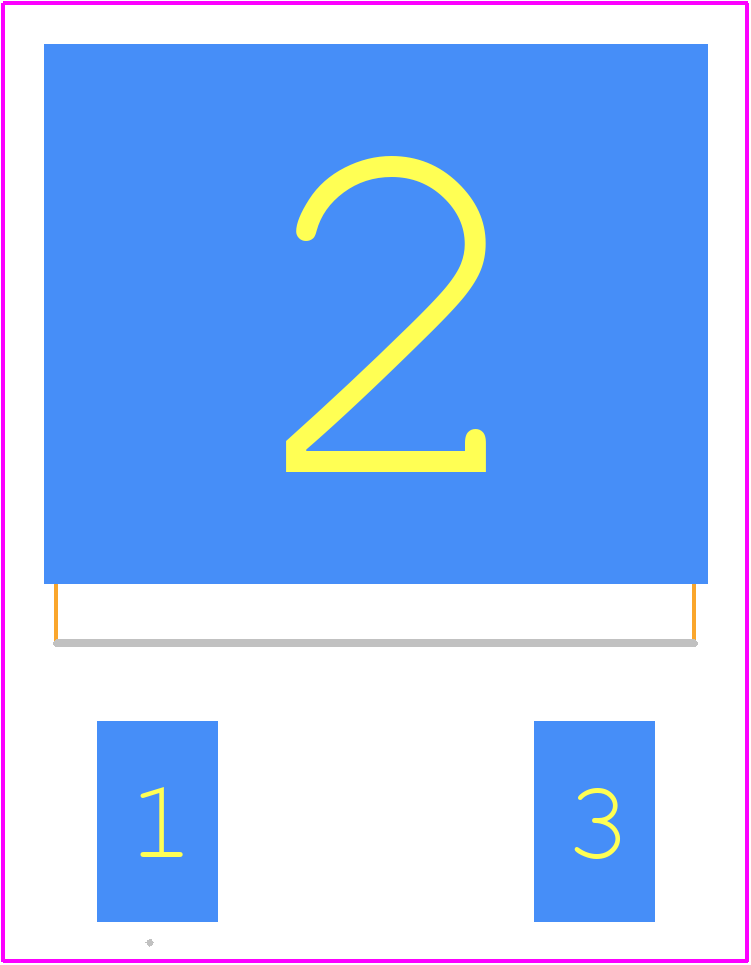

IXTT10P60 - LITTELFUSE PCB footprint - Other - Other - IXTT10P60-1
click to zoom
3D Models
IXTT10P60 - LITTELFUSE  - 3D model - Other - IXTT10P60-1
click to zoom

IXTT10P60 Details

  • Manufacturer Part Number:

    IXTT10P60

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Not Compliant

  • ECCN Code:

    EAR99

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    6.25

  • Additional Feature:

    AVALANCHE RATED

  • Avalanche Energy Rating (Eas):

    3 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    600 V

  • Drain Current-Max (ID):

    10 A

  • Drain-source On Resistance-Max:

    1 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    157 pF

  • JEDEC-95 Code:

    TO-268AA

  • JESD-30 Code:

    R-PSSO-G2

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    P-CHANNEL

  • Power Dissipation-Max (Abs):

    300 W

  • Pulsed Drain Current-Max (IDM):

    40 A

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

IXTT10P60 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the IXTT10P60 is a standard TO-220 package with a minimum pad size of 3.5mm x 2.5mm and a thermal pad size of 2.5mm x 2.5mm.
  • While the IXTT10P60 is primarily designed for low-frequency applications, it can be used in high-frequency applications up to 100 kHz with proper PCB layout and design considerations. However, it's essential to consult with Littelfuse's application engineers for specific guidance.
  • The IXTT10P60 is designed to handle high surge currents up to 100 A for 10 ms. However, it's crucial to ensure that the device is properly cooled and that the PCB design can handle the thermal stress generated by the surge current.
  • Yes, the IXTT10P60 is compatible with lead-free soldering processes, including SAC305 and Sn96.5Ag3Cu0.5. However, it's essential to follow the recommended soldering profile and temperature guidelines to ensure reliable assembly.
  • The typical thermal resistance of the IXTT10P60 is 2.5°C/W (junction-to-case) and 10°C/W (junction-to-ambient) when mounted on a standard FR4 PCB with a copper heat sink.
