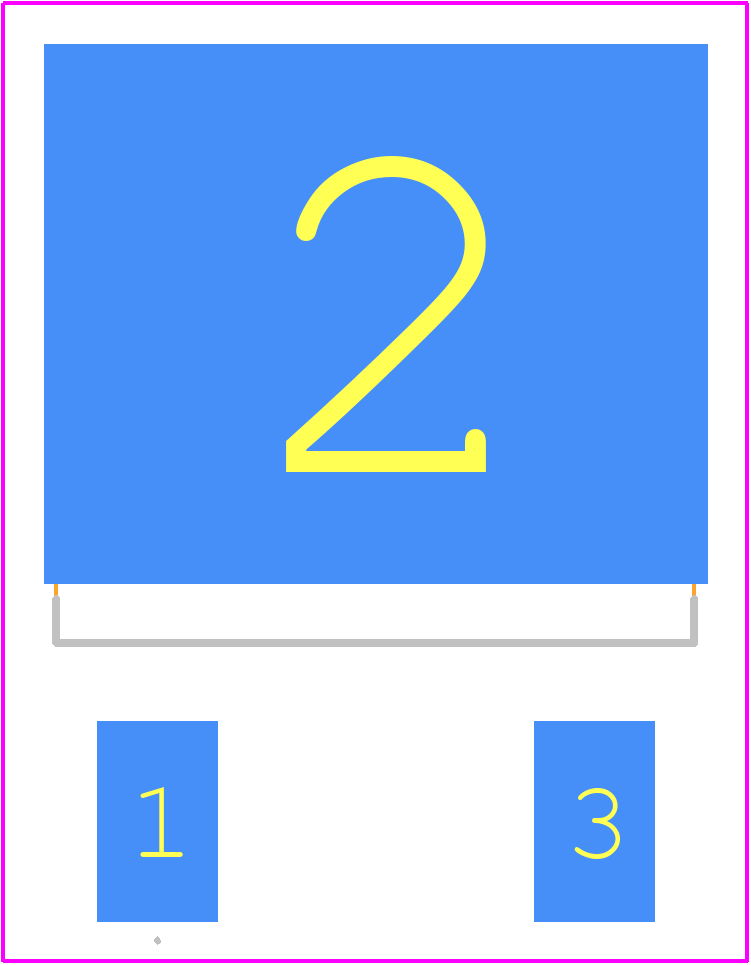

The recommended PCB footprint for the IXTT16N20D2 is a standard TO-220 package with a minimum pad size of 3.5mm x 2.5mm and a thermal pad size of 2.5mm x 2.5mm.
The IXTT16N20D2 is rated for operation up to 150°C, but it's recommended to derate the device's current and voltage ratings above 125°C to ensure reliable operation.
To ensure proper soldering, use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder paste to the pads. Avoid applying excessive force or heat, which can damage the device.
Store the IXTT16N20D2 in a dry, cool place away from direct sunlight and moisture. Handle the devices by the body, avoiding touching the leads or electrical contacts to prevent damage or contamination.
The IXTT16N20D2 is not hermetically sealed, so it's not recommended for use in high-humidity environments. If exposure to moisture is unavoidable, consider using a conformal coating or potting compound to protect the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IXTT16N20D2 Overview
Use the download button to access the IXTT16N20D2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IXTT1,
or try a keyword search, such as Power Field-Effect Transistors
