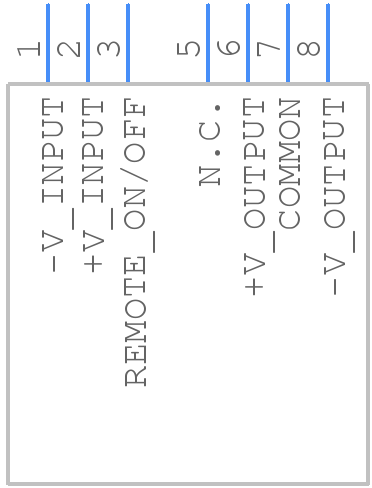

IZ1212S - XP POWER

IZ1212S Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  XP Power recommends a PCB layout with a large copper area connected to the tab of the IZ1212S to dissipate heat efficiently. A minimum of 1 oz copper thickness is recommended, and the copper area should be connected to a solid ground plane to reduce thermal resistance.
• How do I ensure reliable start-up of the IZ1212S in my application?
  To ensure reliable start-up, XP Power recommends a soft-start circuit to limit the inrush current during power-on. A resistive-capacitive (RC) snubber network can also be used to reduce electromagnetic interference (EMI) and ensure stable operation.
• What is the maximum allowable capacitance for the output filter capacitor?
  The maximum allowable capacitance for the output filter capacitor is 10uF. Exceeding this value may cause instability or oscillation in the converter. It's essential to follow the recommended output filter capacitor values and configurations to ensure stable operation.
• Can I use the IZ1212S in a high-temperature environment?
  The IZ1212S is rated for operation up to 85°C ambient temperature. However, derating is required for temperatures above 70°C. XP Power recommends consulting the datasheet and application notes for specific derating guidelines and thermal management recommendations.
• How do I troubleshoot common issues with the IZ1212S, such as output voltage instability or overheating?
  XP Power provides application notes and troubleshooting guides on their website. Common issues can often be resolved by checking the input voltage, output load, and PCB layout. In cases of output voltage instability, check the output filter capacitor values and configurations. For overheating issues, ensure proper thermal management and follow the recommended PCB layout and heat sink guidelines.
