IZ1212SA - XP POWER

Description: Isolated DC/DC Converters - Through Hole DC DC CONVERTER, 3WATT, REGULATED

Download IZ1212SA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

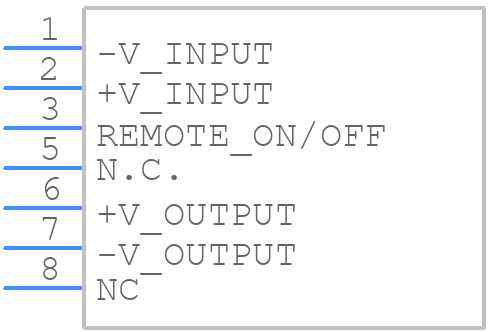

IZ1212SA - XP POWER - PCB symbol
click to zoom
PCB Footprints
IZ1212SA - XP POWER PCB footprint - Other - Other - IZ1212SA-2
click to zoom
3D Models
IZ1212SA - XP POWER - 3D model - Other - IZ1212SA-2
click to zoom

IZ1212SA Details

  • Manufacturer Part Number:

    IZ1212SA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    Module-7

  • Pin Count:

    8/7

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    9 V

  • JESD-30 Code:

    R-XSMA-T7

  • Length:

    21.85 mm

  • Load Regulation-Max:

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    12.12 V

  • Output Voltage-Min:

    11.88 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    SMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    12.1 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    3 W

  • Trim/Adjustable Output:

    NO

  • Width:

    9.2 mm

IZ1212SA Frequently Asked Questions (FAQs)

  • XP Power recommends a PCB layout with a large copper area connected to the tab of the IZ1212SA to dissipate heat effectively. A minimum of 1 oz copper thickness is recommended, and the copper area should be connected to a solid ground plane to reduce thermal resistance.
  • The IZ1212SA meets various safety certifications, including UL60950-1, EN60950-1, and IEC60950-1. However, to ensure compliance with your specific requirements, consult with XP Power's technical support team to discuss your application and obtain the necessary certification documents.
  • The maximum capacitance value for the input filter capacitor is 47uF. Exceeding this value may affect the stability of the IZ1212SA and lead to reduced performance or even failure.
  • Yes, the IZ1212SA is designed to withstand high-vibration environments. However, it's essential to ensure that the module is properly secured to the PCB and that the PCB is designed to withstand the vibration levels in your application.
  • XP Power recommends a fuse rating of 2A to 5A, depending on the input voltage and current requirements of your application. Consult with XP Power's technical support team to determine the optimal fuse rating for your specific use case.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IZ1212SA Overview

Use the download button to access the IZ1212SA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IZ121, or try a keyword search, such as Power Supply Modules
