XP Power recommends a PCB layout with a large copper area connected to the tab of the IZ1215SA to dissipate heat efficiently. A minimum of 1 square inch of copper is recommended, and the use of thermal vias can further improve heat dissipation.
To ensure reliable start-up, XP Power recommends a soft-start circuit or a ramp-up of the input voltage to prevent high inrush currents. Additionally, a sufficient input capacitance (e.g., 10uF) should be used to filter out noise and ensure stable operation.
The maximum allowed capacitance on the output of the IZ1215SA is 10uF. Exceeding this value may cause instability or oscillation in the converter. If a larger capacitance is required, a capacitance multiplier or a separate output filter stage should be used.
The IZ1215SA is rated for operation up to 85°C ambient temperature. However, derating of the output power may be necessary at higher temperatures to prevent overheating. XP Power recommends consulting the datasheet and application notes for specific guidance on high-temperature operation.
To troubleshoot issues with the IZ1215SA, XP Power recommends checking the input voltage, output voltage, and output current. Verify that the input voltage is within the specified range, and that the output voltage and current are within the expected ranges. Also, check for proper PCB layout, thermal management, and component selection. Consult the datasheet and application notes for specific troubleshooting guidance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IZ1215SA Overview

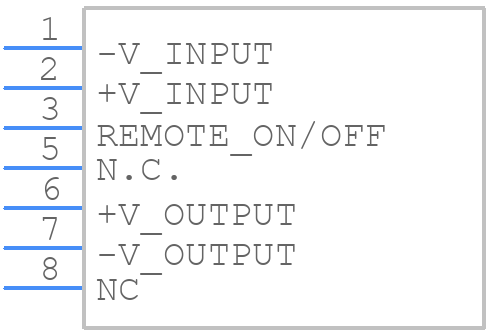

Use the download button to access the IZ1215SA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IZ121,
or try a keyword search, such as Power Supply Modules
