XP Power recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure optimal thermal performance.
To ensure reliable start-up, XP Power recommends a soft-start circuit or a ramp-up of the input voltage to prevent inrush currents and ensure a smooth start-up.
The IZ2412SA can drive a maximum capacitive load of 10uF. Exceeding this value may cause instability or oscillations.
While the IZ2412SA is rated for operation up to 85°C, XP Power recommends derating the output power by 1.5% per degree above 70°C to ensure reliable operation in high-temperature environments.
XP Power recommends checking the input voltage, output voltage, and output current to identify the root cause of any issues. Additionally, checking the thermal performance and ensuring proper PCB layout can help troubleshoot issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IZ2412SA Overview

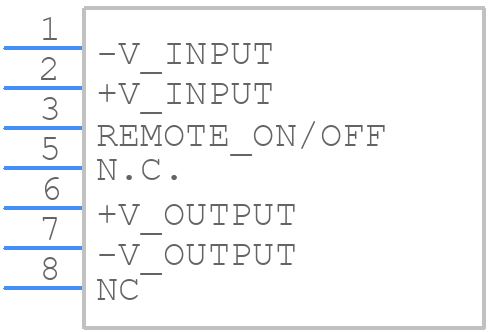

Use the download button to access the IZ2412SA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IZ241,
or try a keyword search, such as Power Supply Modules
