J01001A0038 footprint, schematic symbol and 3D model by Telegartner

Symbol

click to zoom

PCB Footprints

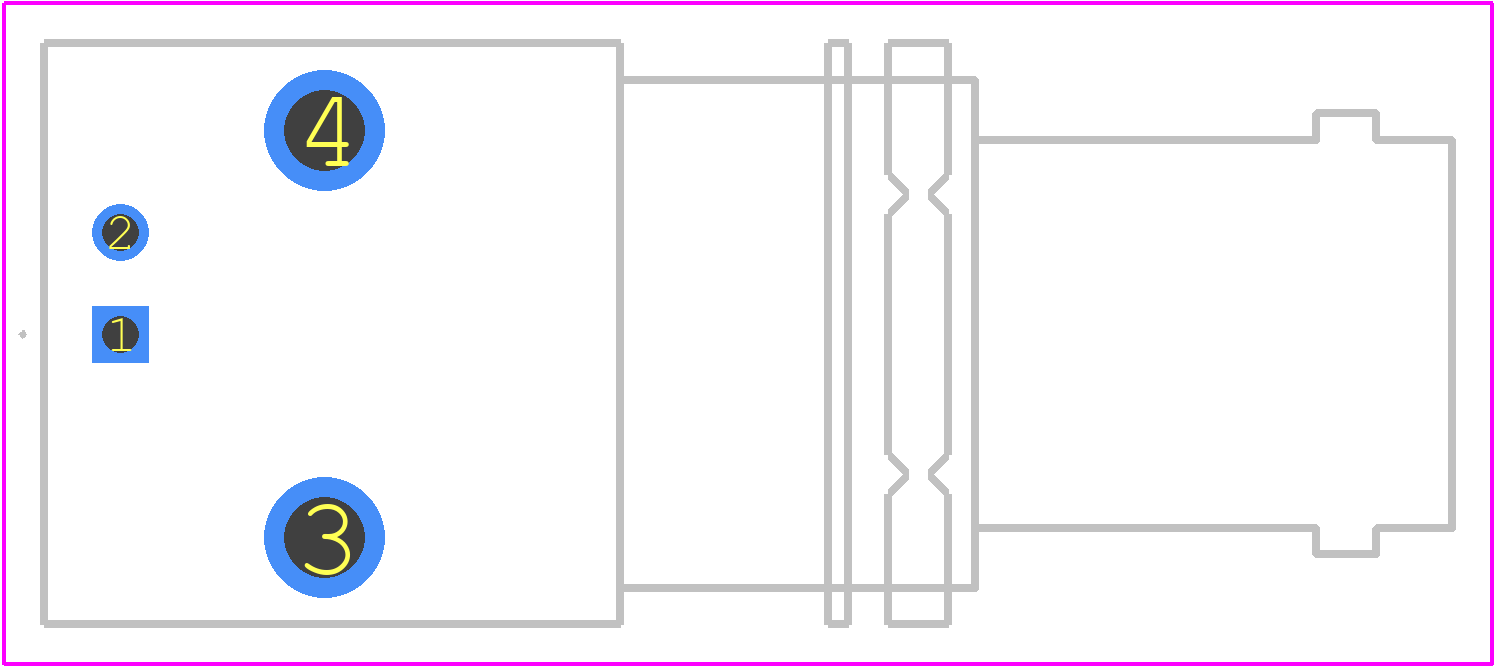

J01001A0038 - Telegartner PCB footprint - Other - Other - J01001A0038-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for J01001A0038
Part Number J01001A0038
Manufacturer Telegartner
Pin Count 4
Part Category Connector
Package Category Other
Footprint Name Other - J01001A0038-2
Released Date Apr 4, 2025
Last Modified Date Apr 4, 2025 6:15 AM UTC
Pinout / Pin List Click Here (Member Only)

J01001A0038 Details

Manufacturer Part Number:
J01001A0038
Part Life Cycle Code:
Contact Manufacturer
ECCN Code:
EAR99
HTS Code:
8536.69.40.10
Manufacturer:
Telegartner Karl Gartner GmbH
Additional Feature:
STANDARD: IEC 61169-8, 75 OHMS ALSO AVAILABLE, VSWR MAX AT 3 GHZ
Body/Shell Style:
RECEPTACLE
Characteristic Impedance:
50 Ω
Connector Type:
RF BNC CONNECTOR
Contact Finish Mating:
COPPER NICKEL GOLD
Contact Finish Termination:
GOLD
Contact Gender:
FEMALE
Coupling Type:
BAYONET
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
YES
Insulator Material:
POLYETHYLENE/POLYTETRAFLUORO ETHYLENE
JESD-609 Code:
e4
MIL Conformance:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD AND PANEL
Operating Frequency-Max:
4 GHz
Option:
GENERAL PURPOSE
Panel Mount:
YES
Termination Type:
SOLDER
VSWR:
1.3

J01001A0038 Frequently Asked Questions (FAQs)

The operating temperature range of the J01001A0038 connector is -40°C to +85°C.
Yes, the J01001A0038 connector is suitable for outdoor use due to its IP67 rating, which provides protection against dust and water ingress.
The mating cycle of the J01001A0038 connector is 500 cycles.
Yes, the J01001A0038 connector is designed to withstand high-vibration applications, with a vibration resistance of 10g (sinusoidal) and 20g (random) according to IEC 60512-6.
Yes, the J01001A0038 connector is RoHS and REACH compliant, making it suitable for use in the European Union and other regions with similar regulations.

Trust Checks

Community Provided

System Verified

Community Approved

J01001A0038 Overview

Use the download button to access the J01001A0038 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like J0100, or try a keyword search, such as RF BNC Connectors
