The recommended operating temperature range for the JAN2N3440 is -55°C to 125°C.
To ensure proper biasing, the JAN2N3440 requires a voltage supply of 15V to 30V, and a current limit resistor (Rb) of 1kΩ to 10kΩ. Additionally, a bypass capacitor (Cb) of 10nF to 100nF is recommended to filter out noise.
The maximum power dissipation of the JAN2N3440 is 1.5W. It is essential to ensure that the device does not exceed this limit to prevent overheating and damage.
Yes, the JAN2N3440 is designed for high-reliability applications, including aerospace, defense, and industrial control systems. It meets the requirements of MIL-PRF-19500 and is screened to ensure high reliability.
To prevent electrostatic discharge (ESD) damage, it is essential to handle the JAN2N3440 with ESD-protective equipment, such as wrist straps, mats, and bags. Additionally, ensure that the device is stored in a conductive container or bag when not in use.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
JAN2N3440 Overview

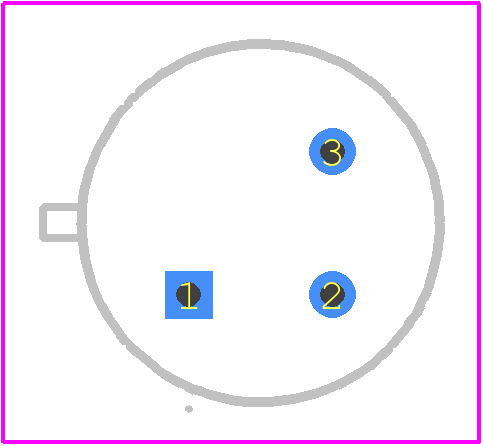

Use the download button to access the JAN2N3440 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like JAN2N,
or try a keyword search, such as Small Signal Bipolar Transistors
