A good PCB layout for JC2AF-DC24V-F involves keeping the input and output pins separate, using a ground plane, and minimizing the length of the input and output traces to reduce noise and electromagnetic interference (EMI).
To ensure reliability in high-temperature applications, it's essential to follow the recommended derating curves, ensure good thermal management, and consider using a heat sink if necessary. Additionally, verify that the component is within its specified operating temperature range.
To minimize EMI and RFI, use a shielded cable for the input and output, keep the component away from high-frequency sources, and consider adding EMI filters or shielding to the PCB design. Follow the recommended layout and grounding guidelines to reduce radiation.
Yes, JC2AF-DC24V-F can be used in redundant or parallel configurations, but it's crucial to ensure that the components are properly synchronized and that the output currents are balanced to prevent overheating or damage.
Handle JC2AF-DC24V-F with care to prevent mechanical stress, and store them in a dry, cool place away from direct sunlight. Avoid exposing the component to moisture, extreme temperatures, or physical shock.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
JC2AF-DC24V-F Overview

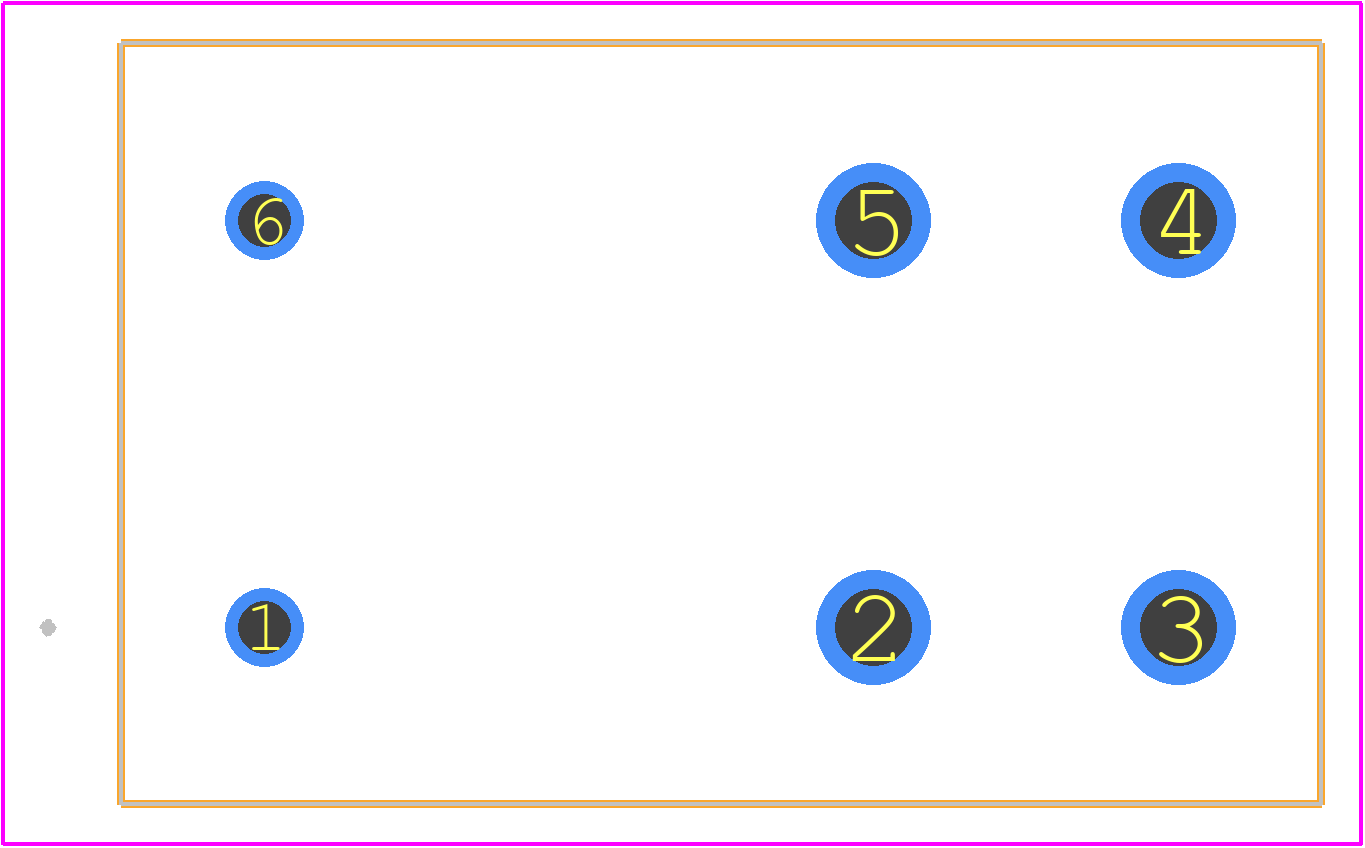

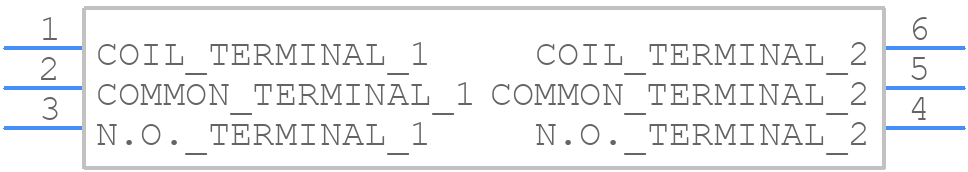

Use the download button to access the JC2AF-DC24V-F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JC2AF,
or try a keyword search, such as Power/Signal Relays
Suggested Parts
If you searched for JC2AF-DC24V-F, you might also be interested in these parts:
