XP Power recommends a PCB layout with a large copper area connected to the module's thermal pad to dissipate heat efficiently. A minimum of 1 oz copper thickness is recommended, and the copper area should be at least 1 inch x 1 inch in size.
Yes, the JCA0212S05 is designed to withstand high-vibration environments. It meets the IEC 60068-2-6 vibration test standard, which involves sinusoidal vibration at 10-2000 Hz, 2G amplitude, and 1-hour duration.
To ensure EMC, XP Power recommends following the guidelines in the CISPR 22 and EN 55022 standards. This includes using a metal enclosure, proper grounding, and shielding of cables and components. Additionally, the module's input and output cables should be kept as short as possible and routed away from noise sources.
The maximum allowable capacitance for the output filter is 10uF. Exceeding this value may affect the module's stability and performance.
Yes, the JCA0212S05 can be used in a redundant configuration to achieve high reliability and availability. However, it's essential to ensure that the modules are properly synchronized and that the system is designed to handle the redundancy.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
JCA0212S05 Overview

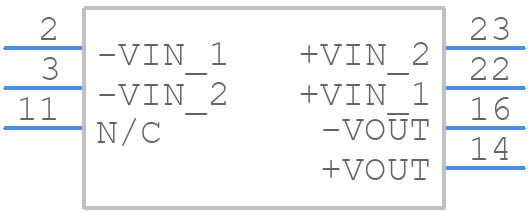

Use the download button to access the JCA0212S05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JCA02,
or try a keyword search, such as Power Supply Modules
