XP Power recommends a PCB layout with a large copper area connected to the module's thermal pad to dissipate heat efficiently. A minimum of 1 oz copper thickness is recommended, and the copper area should be at least 1 inch x 1 inch in size.
Yes, the JCA0224S12 is designed to withstand high-vibration environments. However, it's essential to ensure that the module is properly secured to the PCB and that the PCB is rigid enough to prevent flexing or resonance that could affect the module's performance.
The JCA0224S12's input filter is designed to meet CISPR 22 Class B EMC requirements. To ensure compliance, XP Power recommends adding additional external filtering components, such as a common-mode choke and X-capacitors, to the input circuit.
XP Power recommends keeping the output cable length as short as possible (less than 6 inches) to minimize voltage drops and ensure reliable operation. If longer cables are necessary, the cable's gauge and material should be selected to minimize voltage drops and ensure the output voltage remains within the specified range.
Yes, the JCA0224S12 can be used in redundant or parallel configurations to achieve higher power output or to provide redundancy in critical systems. However, it's essential to ensure that the modules are properly synchronized and that the system is designed to handle the increased power output and heat generation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
JCA0224S12 Overview

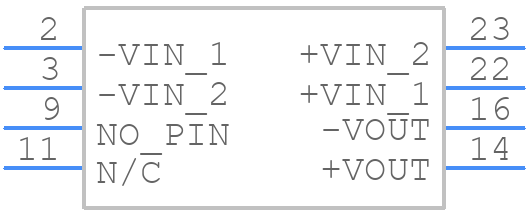

Use the download button to access the JCA0224S12 schematic symbol, PCB footprint, and 3D model.
