JCA0312S05 - XP POWER

Description: XP Power JCA 3W Isolated DC-DC Converter Through Hole, Vin 9 → 18 V dc, Vout 5V dc, I/O isolation 1.5kV dc

Download JCA0312S05 Model

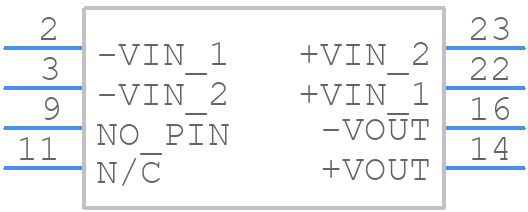

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

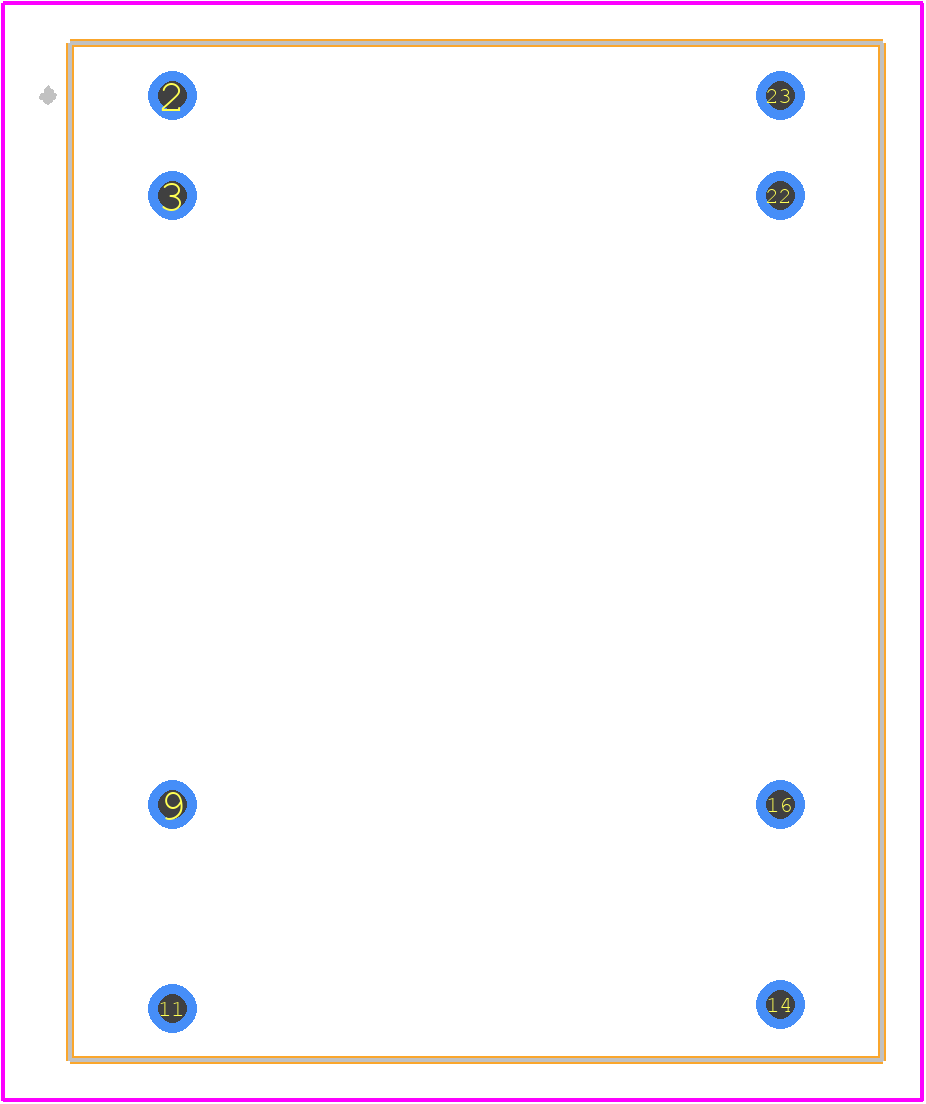

PCB Footprints
JCA0312S05 - XP POWER PCB footprint - Other - Other - JCA04/06
click to zoom
3D Models
JCA0312S05 - XP POWER  - 3D model - Other - JCA04/06
click to zoom

JCA0312S05 Details

  • Manufacturer Part Number:

    JCA0312S05

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-MDMA-P8

  • Length:

    25.4 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.05 V

  • Output Voltage-Min:

    4.95 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    METAL

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    10.5 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    2.5 mm

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    3 W

  • Trim/Adjustable Output:

    NO

  • Width:

    20.3 mm

JCA0312S05 Frequently Asked Questions (FAQs)

  • XP Power recommends a PCB layout with a large copper area for heat dissipation, and a minimum of 2oz copper thickness. A thermal via array under the module can also improve heat dissipation.
  • To ensure reliable start-up, XP Power recommends a soft-start circuit or a ramp-up voltage supply to prevent inrush currents. Additionally, a minimum input voltage of 10V is recommended for reliable start-up.
  • The maximum allowable capacitance on the output is 220uF. Exceeding this value may cause instability or oscillations in the converter.
  • While the JCA0312S05 is rated for operation up to 80°C, XP Power recommends derating the output power by 2.5% per degree above 60°C to ensure reliable operation in high-temperature environments.
  • To troubleshoot output voltage deviations or instability, check the input voltage, output capacitance, and PCB layout for thermal issues. Ensure the module is properly soldered and the input voltage is within the recommended range.
