XP Power recommends a PCB layout with a large copper area connected to the module's thermal pad to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
Yes, the JCA0324D02 is designed to withstand vibrations up to 10G peak acceleration, making it suitable for use in high-vibration environments. However, it's essential to ensure proper mounting and screw torque to prevent damage or dislodging of the module.
To ensure EMC, XP Power recommends using a metal enclosure, keeping the module away from sensitive components, and using proper cable shielding and filtering. Additionally, the module's input and output cables should be kept as short as possible and routed away from each other.
The maximum allowable input capacitance for the JCA0324D02 is 47µF. Exceeding this value may cause instability or oscillation in the module. It's essential to ensure that the input capacitance is within the recommended range to guarantee reliable operation.
Yes, the JCA0324D02 can be used in a redundant or parallel configuration to achieve higher power ratings or improve system reliability. However, it's crucial to ensure that the modules are properly synchronized and configured to prevent damage or instability.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
JCA0324D02 Overview

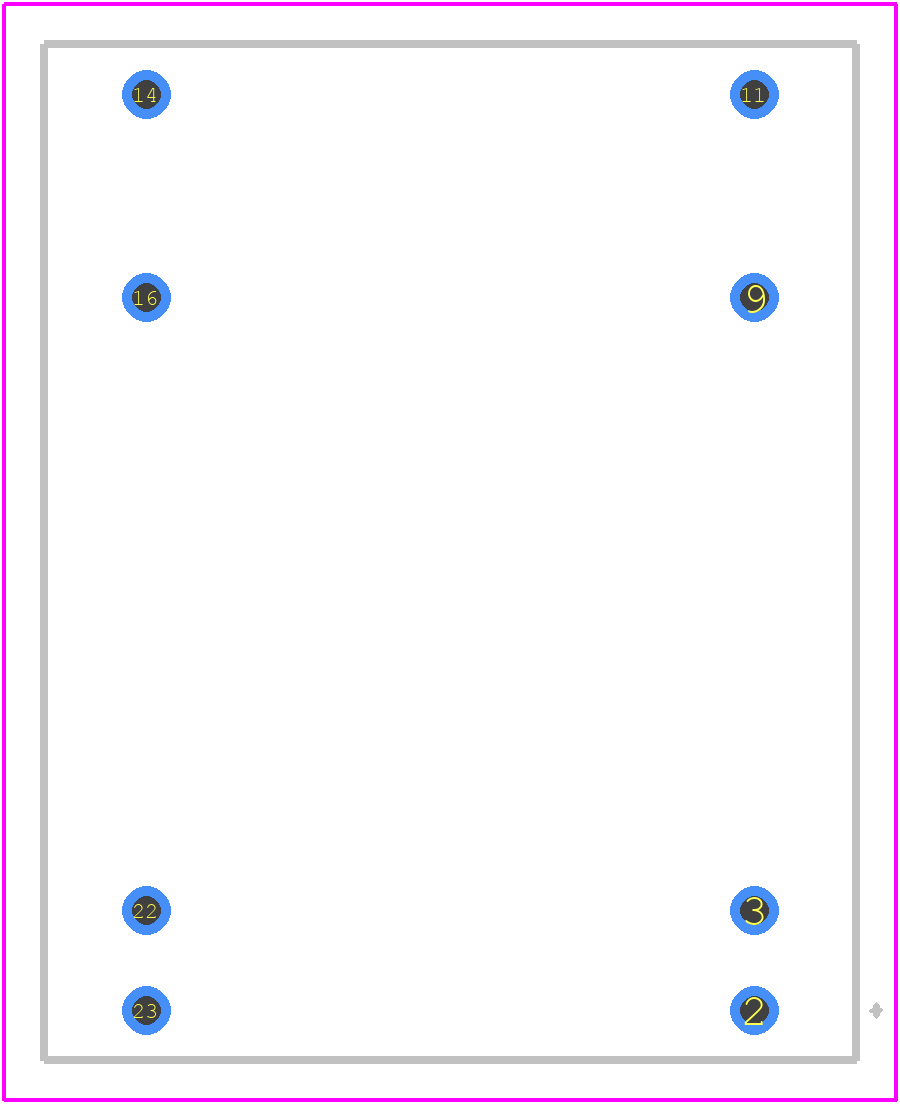

Use the download button to access the JCA0324D02 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JCA03,
or try a keyword search, such as Power Supply Modules
