JCA0324S05 - XP POWER

Description: Isolated DC/DC Converters DC-DC, 3W, single output

Download JCA0324S05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

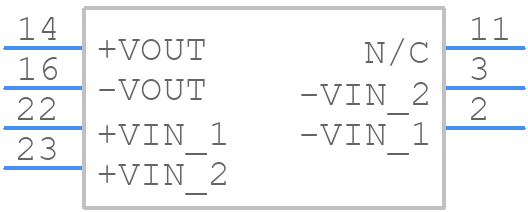

Symbol
JCA0324S05 - XP POWER - PCB symbol
click to zoom
PCB Footprints
JCA0324S05 - XP POWER PCB footprint - Other - Other - JCA0324S05-2
click to zoom
3D Models
JCA0324S05 - XP POWER - 3D model - Other - JCA0324S05-2
click to zoom

JCA0324S05 Details

  • Manufacturer Part Number:

    JCA0324S05

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-MDMA-P8

  • Length:

    25.4 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.05 V

  • Output Voltage-Min:

    4.95 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    METAL

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    10.5 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    2.5 mm

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    3 W

  • Trim/Adjustable Output:

    NO

  • Width:

    20.3 mm

JCA0324S05 Frequently Asked Questions (FAQs)

  • XP Power recommends a PCB layout with a large copper area for heat dissipation, and a minimum of 2oz copper thickness. A thermal via array under the module is also recommended.
  • To ensure reliable start-up, XP Power recommends a soft-start circuit or a ramp-up of the input voltage to prevent inrush currents. A minimum input capacitance of 10uF is also recommended.
  • The maximum allowed capacitance on the output is 220uF. Exceeding this value may affect the stability of the converter.
  • The JCA0324S05 is rated for operation up to 80°C ambient temperature. For higher temperatures, derating of the output power is required. Consult XP Power for specific guidance.
  • The JCA0324S05 has built-in overcurrent protection. However, for additional protection, XP Power recommends using an external current sense resistor and a fuse or circuit breaker.
