JCD0505D12 - XP POWER

Description: XP Power Through Hole 5W Isolated DC-DC Converter, Vin 4.5 → 9 V dc, I/O isolation 1.6kV dc, Vout ±12V dc

Download JCD0505D12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

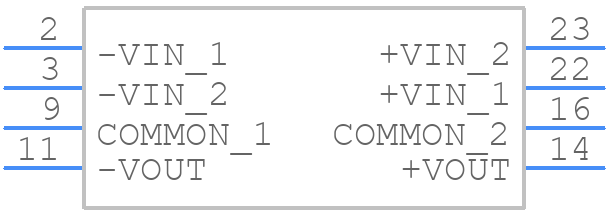

JCD0505D12 - XP POWER - PCB symbol
click to zoom
PCB Footprints
JCD0505D12 - XP POWER PCB footprint - Other - Other - JCD0505D12-1
click to zoom
3D Models
JCD0505D12 - XP POWER - 3D model - Other - JCD0505D12-1
click to zoom

JCD0505D12 Details

  • Manufacturer Part Number:

    JCD0505D12

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Pin Count:

    24/8

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    5

  • Additional Feature:

    ADDITIONAL -12V OUTPUT VOLTAGE ALSO AVAILABLE

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    9 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-XDMA-P8

  • Length:

    31.75 mm

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    12.12 V

  • Output Voltage-Min:

    11.88 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    10.9 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    5 W

  • Trim/Adjustable Output:

    NO

  • Width:

    20.32 mm

JCD0505D12 Frequently Asked Questions (FAQs)

  • XP Power recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
  • To ensure EMC, XP Power recommends following the layout and grounding guidelines in the datasheet, using a metal enclosure, and adding EMI filters and shielding as necessary to meet relevant EMC standards.
  • The derating curve for the JCD0505D12 is not explicitly stated in the datasheet, but XP Power recommends derating the output power by 2.5% per °C above 50°C to ensure reliable operation.
  • Yes, the JCD0505D12 is designed to withstand vibrations up to 10G peak acceleration, but XP Power recommends following the recommended PCB layout and securing the converter to the PCB to ensure reliable operation.
  • The MTBF for the JCD0505D12 is not explicitly stated in the datasheet, but XP Power estimates it to be around 1.5 million hours at 25°C, based on MIL-HDBK-217F calculations.
