JCD0624S09 footprint, schematic symbol and 3D model by XP POWER

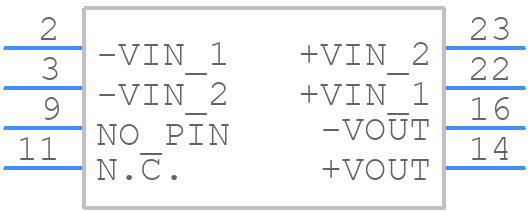

Symbol

click to zoom

PCB Footprints

JCD0624S09 - XP POWER PCB footprint - Other - Other - JCD

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for JCD0624S09
Part Number JCD0624S09
Manufacturer XP POWER
Pin Count 8
Part Category Power Supply
Package Category Other
Footprint Name Other - JCD
Released Date Mar 17, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

JCD0624S09 Details

Manufacturer Part Number:
JCD0624S09
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
MODULE
Pin Count:
24/8
ECCN Code:
EAR99
Manufacturer:
XP Power
YTEOL:
6
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
36 V
Input Voltage-Min:
18 V
Input Voltage-Nom:
24 V
JESD-30 Code:
R-XDMA-P8
Length:
31.75 mm
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Voltage-Max:
9.09 V
Output Voltage-Min:
8.91 V
Output Voltage-Nom:
9 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Seated Height-Max:
10.9 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
INDUSTRIAL
Terminal Form:
PIN/PEG
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
6 W
Trim/Adjustable Output:
NO
Width:
20.32 mm

JCD0624S09 Frequently Asked Questions (FAQs)

XP Power recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
The JCD0624S09 has built-in input voltage transient protection, which can withstand voltage spikes up to 300V for 100ms. However, it's recommended to add external transient protection devices for harsher environments.
The maximum recommended cable length for the output connectors is 10 inches (25cm) to minimize voltage drop and ensure reliable operation.
Yes, the JCD0624S09 can be used in a redundant configuration with another identical unit, using diode ORing or other redundancy schemes, to achieve high reliability and fault tolerance.
The typical efficiency of the JCD0624S09 is around 92% at full load, 90% at 50% load, and 85% at 25% load, depending on the input voltage and operating conditions.

Trust Checks

Expert Contribution

System Verified

Community Approved

JCD0624S09 Overview

Use the download button to access the JCD0624S09 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like JCD06, or try a keyword search, such as Power Supply Modules
