JCE0324D15-H - XP POWER

Description: XP Power Through Hole 3W Isolated DC-DC Converter, Vin 18 → 36 V dc, I/O isolation 3kV dc, Vout 15V dc

Download JCE0324D15-H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
JCE0324D15-H - XP POWER - PCB symbol
click to zoom
PCB Footprints

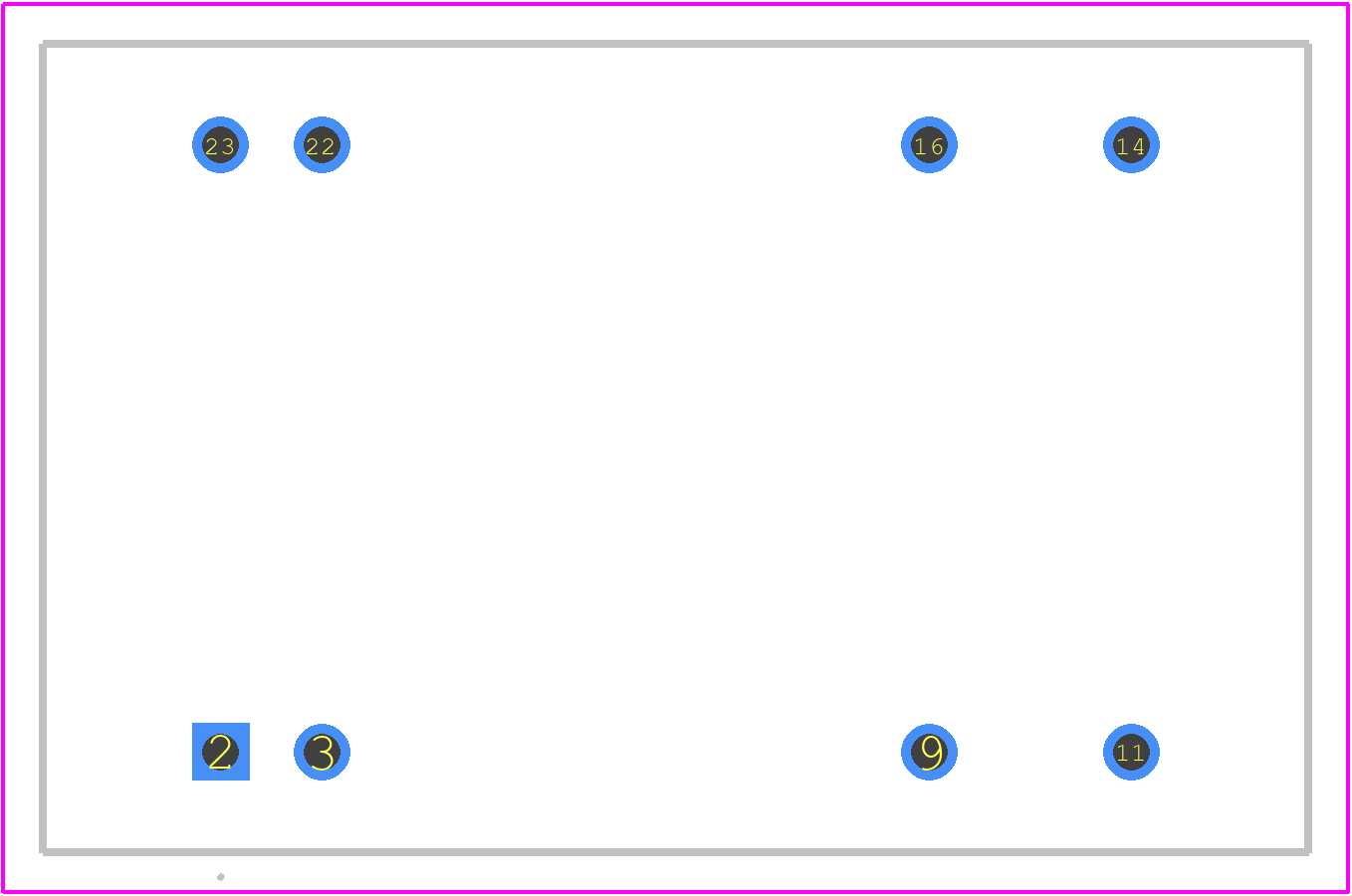

JCE0324D15-H - XP POWER PCB footprint - Other - Other - JCE0324D15-H-2
click to zoom
3D Models
JCE0324D15-H - XP POWER - 3D model - Other - JCE0324D15-H-2
click to zoom

JCE0324D15-H Details

  • Manufacturer Part Number:

    JCE0324D15-H

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    Module-8

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    6

  • Additional Feature:

    ADDITIONAL -15V OUTPUT AVAILABLE

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PDMA-T8

  • Length:

    31.75 mm

  • Load Regulation-Max:

    1.2%

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    15.3 V

  • Output Voltage-Min:

    14.7 V

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    10.66 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    3 W

  • Trim/Adjustable Output:

    NO

  • Width:

    20.32 mm

JCE0324D15-H Frequently Asked Questions (FAQs)

  • XP Power recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
  • To ensure EMC, XP Power recommends following the guidelines in the datasheet for input and output filtering, and using a metal enclosure with proper shielding and grounding to minimize electromagnetic radiation.
  • The derating curve for the JCE0324D15-H is not explicitly stated in the datasheet, but XP Power recommends derating the output power by 2.5% per degree Celsius above 50°C to ensure reliable operation.
  • Yes, the JCE0324D15-H is designed to withstand vibrations up to 10G peak acceleration, but XP Power recommends following the guidelines in the datasheet for mounting and securing the module to ensure reliable operation.
  • The MTBF for the JCE0324D15-H is not explicitly stated in the datasheet, but XP Power estimates it to be around 1.5 million hours at 25°C, based on MIL-HDBK-217F calculations.
