JCE0612D12 - XP POWER

Description: XP POWER - JCE0612D12 - DC-DC CONVERTER, ISO POL, 2O/P, 0.25A, 6W

Download JCE0612D12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
JCE0612D12 - XP POWER - PCB symbol
click to zoom
PCB Footprints

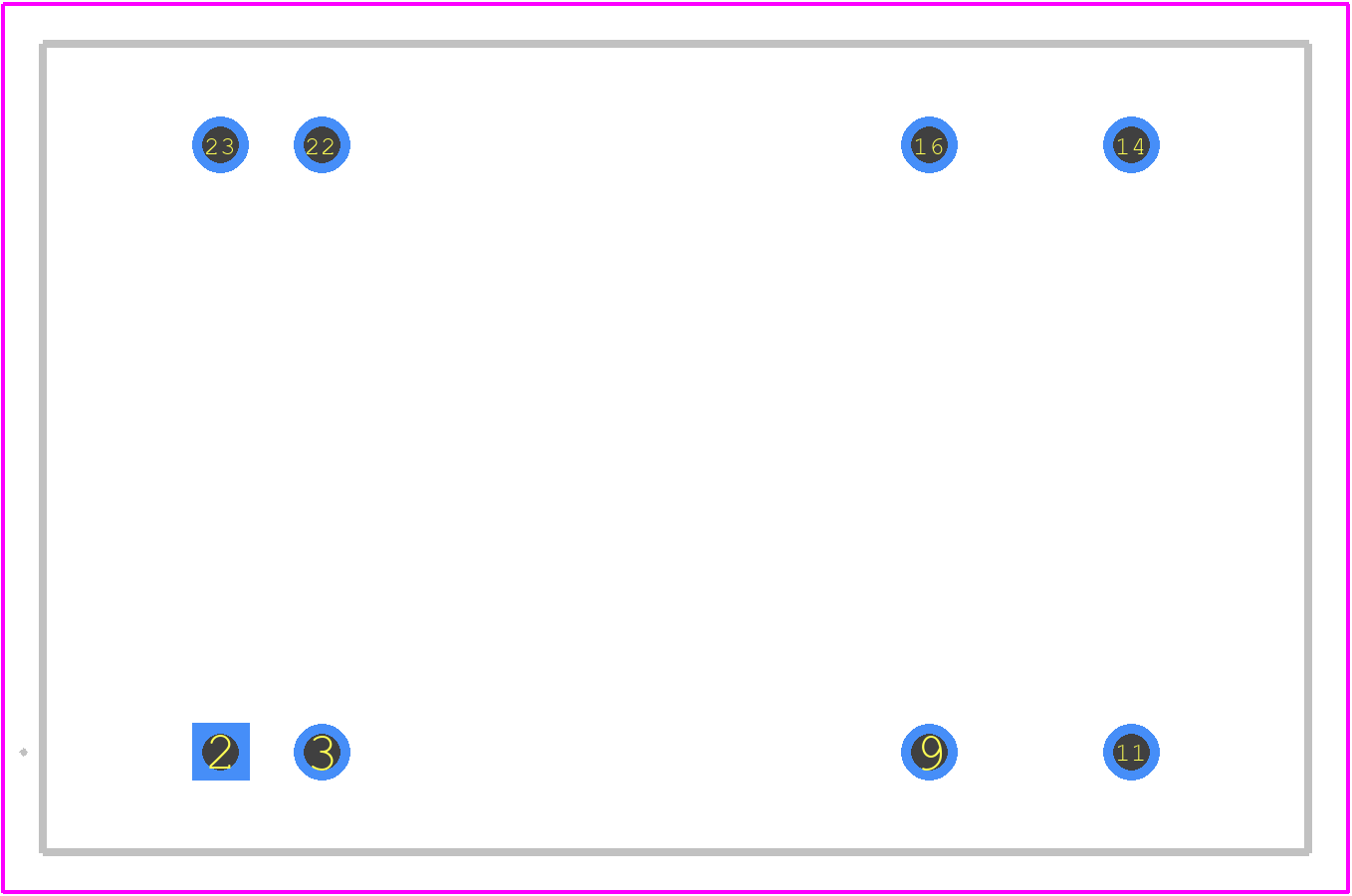

JCE0612D12 - XP POWER PCB footprint - Other - Other - JCE0612D12-1
click to zoom
3D Models
JCE0612D12 - XP POWER - 3D model - Other - JCE0612D12-1
click to zoom

JCE0612D12 Details

  • Manufacturer Part Number:

    JCE0612D12

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    Module-8

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDMA-T8

  • Length:

    31.75 mm

  • Load Regulation-Max:

    5%

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    12.24 V

  • Output Voltage-Min:

    11.76 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    10.9 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    6 W

  • Trim/Adjustable Output:

    NO

  • Width:

    20.32 mm

JCE0612D12 Frequently Asked Questions (FAQs)

  • The maximum capacitance load for the JCE0612D12 is 0.1uF. Exceeding this value may affect the stability of the output voltage.
  • The JCE0612D12 is rated for operation up to 80°C ambient temperature. However, derating may be necessary for temperatures above 60°C. Consult the manufacturer's application notes for guidance.
  • The JCE0612D12 meets various safety certifications, including UL60950-1, EN60950-1, and IEC60950-1. However, it's essential to review the certification documents and ensure they meet your specific application requirements.
  • The recommended input fuse rating for the JCE0612D12 is 2A slow-blow or 1A fast-acting. However, the actual fuse rating may vary depending on the specific application and input voltage.
  • Yes, you can parallel multiple JCE0612D12 modules to increase the output current. However, it's crucial to ensure that the modules are identical, and the output voltage is synchronized to prevent oscillations.
