Part Image

JCE0624D24 - XP POWER

Description: XP Power Through Hole 6W Isolated DC-DC Converter, Vin 18 → 36 V dc, I/O isolation 1.5kV dc, Vout ±24V dc

Download JCE0624D24 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
JCE0624D24 - XP POWER - PCB symbol
click to zoom
PCB Footprints

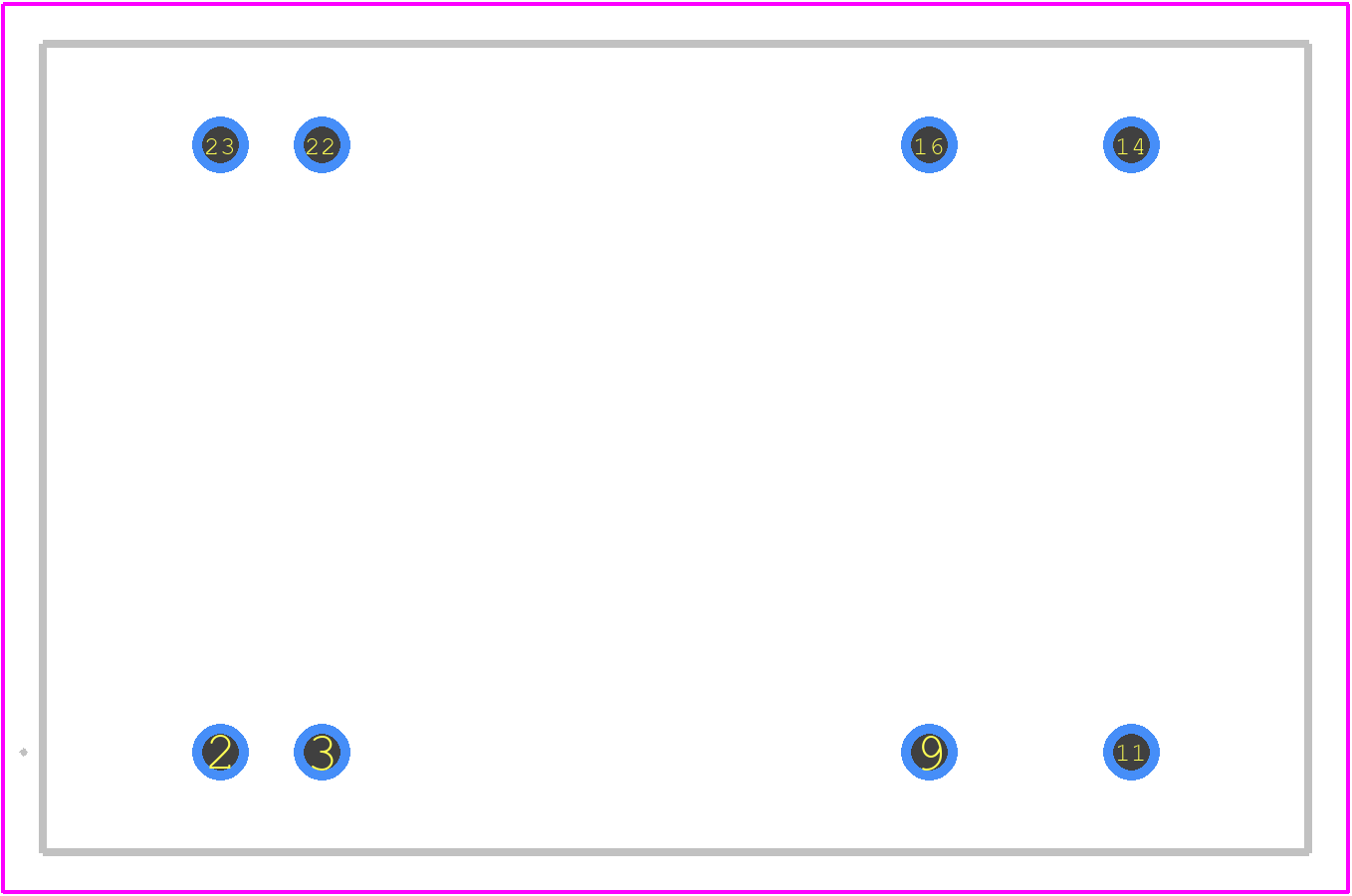

JCE0624D24 - XP POWER PCB footprint - Other - Other - JCE0624D24-1
click to zoom
3D Models
JCE0624D24 - XP POWER - 3D model - Other - JCE0624D24-1
click to zoom

JCE0624D24 Details

  • Manufacturer Part Number:

    JCE0624D24

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    Module-8

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PDMA-T8

  • Length:

    31.75 mm

  • Load Regulation-Max:

    5%

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    24.48 V

  • Output Voltage-Min:

    23.52 V

  • Output Voltage-Nom:

    24 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    10.9 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    6 W

  • Trim/Adjustable Output:

    NO

  • Width:

    20.32 mm

JCE0624D24 Frequently Asked Questions (FAQs)

  • The maximum capacitance load for the JCE0624D24 is 0.1uF to 10uF, depending on the output voltage and frequency. It's recommended to consult with XP Power's application engineers for specific guidance.
  • The JCE0624D24 has a standard operating temperature range of -40°C to 85°C. However, XP Power offers a high-temperature version (JCE0624D24-HT) that can operate up to 100°C. Consult with XP Power for specific temperature derating and requirements.
  • The recommended input fuse rating for the JCE0624D24 is 2A to 5A, depending on the input voltage and system requirements. It's essential to consult with XP Power's application engineers to determine the appropriate fuse rating for your specific application.
  • Yes, the JCE0624D24 is compatible with lead-free soldering processes. XP Power ensures that their products meet the requirements of the RoHS directive and can withstand the higher temperatures associated with lead-free soldering.
  • The MTBF rating for the JCE0624D24 is typically in the range of 1.5 to 2.5 million hours, depending on the operating conditions and environment. Consult with XP Power for specific MTBF data and calculations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

JCE0624D24 Overview

Use the download button to access the JCE0624D24 schematic symbol, PCB footprint, and 3D model.
