JCG1224S05 - XP POWER

Description: XP Power JCG 12W Isolated DC-DC Converter Through Hole, Vin 18 → 36 V dc, Vout 5V dc, I/O isolation 1.6kV dc

Download JCG1224S05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

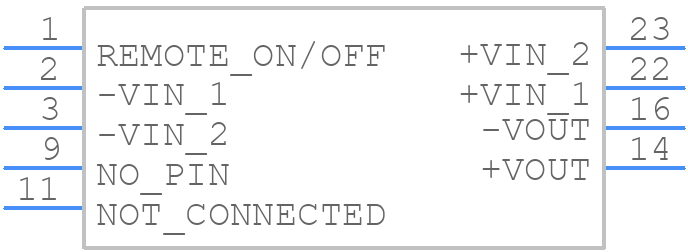

Symbol
JCG1224S05 - XP POWER - PCB symbol
click to zoom

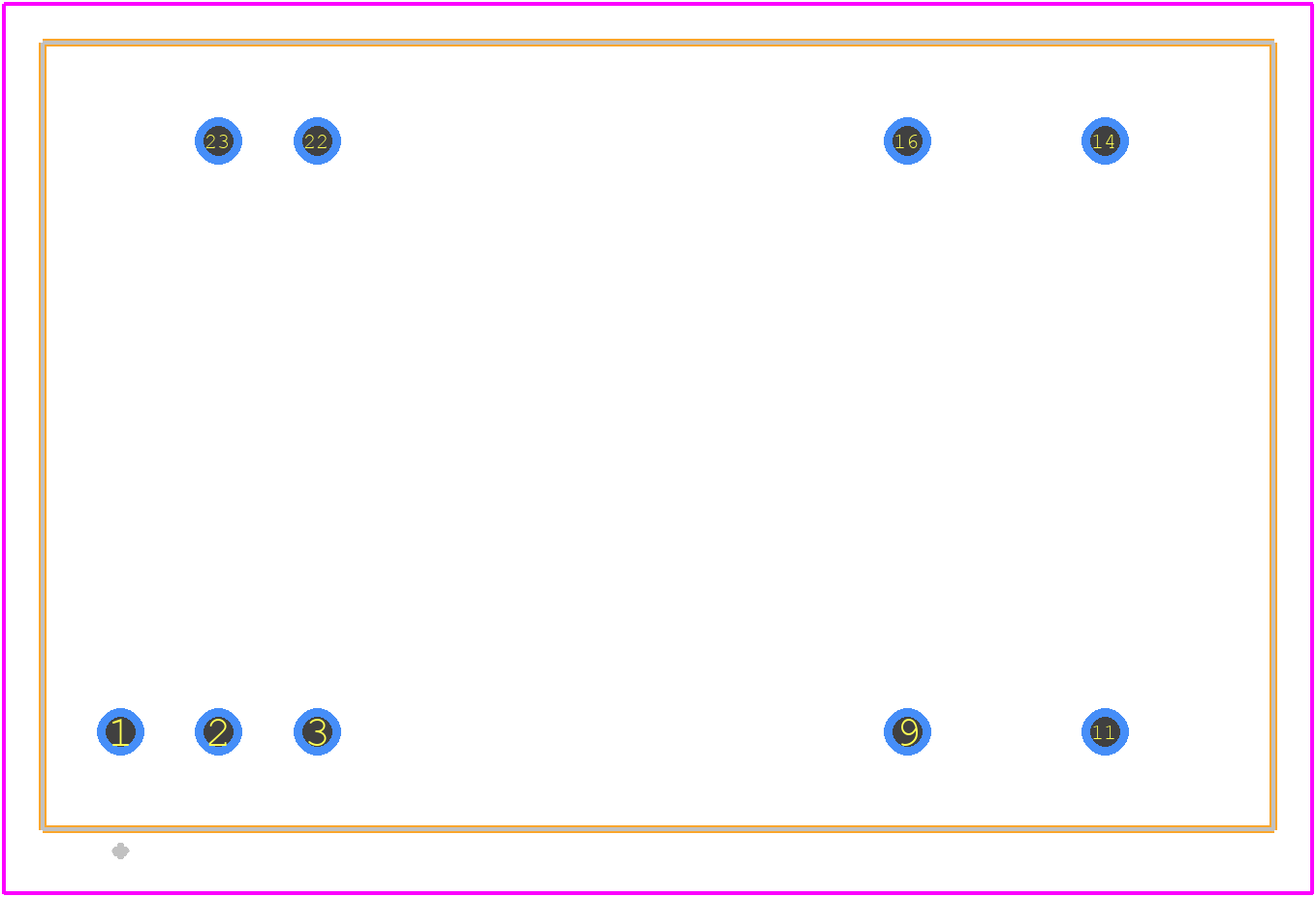

PCB Footprints
JCG1224S05 - XP POWER PCB footprint - Other - Other - JCG_1
click to zoom
3D Models
JCG1224S05 - XP POWER - 3D model - Other - JCG_1
click to zoom

JCG1224S05 Details

  • Manufacturer Part Number:

    JCG1224S05

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Pin Count:

    24/9

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    6

  • Additional Feature:

    SEATED HGT-NOM;

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-P9

  • Length:

    31.75 mm

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.06 V

  • Output Voltage-Min:

    4.94 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    10.16 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    12 W

  • Trim/Adjustable Output:

    NO

  • Width:

    20.32 mm

JCG1224S05 Frequently Asked Questions (FAQs)

  • The maximum capacitance load for the JCG1224S05 is 0.1uF. Exceeding this value may affect the stability of the output voltage.
  • While the JCG1224S05 is rated for operation up to 80°C, it's recommended to derate the output power by 2.5% per degree above 60°C to ensure reliable operation.
  • To ensure EMC, use a metal enclosure, keep the input and output cables separate, and add a ferrite bead or common-mode choke to the input lines. Also, ensure the PCB layout follows good EMC practices.
  • The recommended input fuse rating for the JCG1224S05 is 1A slow-blow or 2A fast-acting, depending on the specific application and input voltage.
  • Yes, you can parallel multiple JCG1224S05 modules, but ensure the output voltages are matched, and the modules are synchronized to prevent oscillations. Also, consult with XP Power's application engineers for specific guidance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

JCG1224S05 Overview

Use the download button to access the JCG1224S05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JCG12, or try a keyword search, such as Power Supply Modules
