JCG1524D15 - XP POWER

Description: XP Power Through Hole 15W Isolated DC-DC Converter, Vin 18 → 36 V dc, I/O isolation 1.6kV dc, Vout ±15V dc

Download JCG1524D15 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

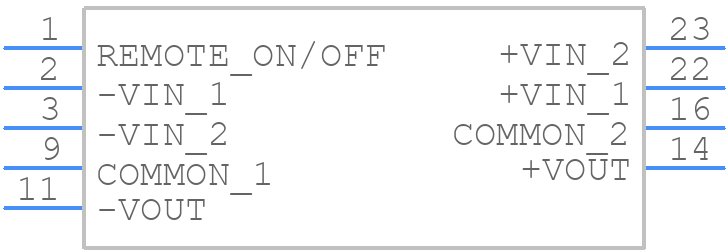

JCG1524D15 - XP POWER - PCB symbol
click to zoom
PCB Footprints
JCG1524D15 - XP POWER PCB footprint - Other - Other - 24 pin DIL
click to zoom
3D Models
JCG1524D15 - XP POWER - 3D model - Other - 24 pin DIL
click to zoom

JCG1524D15 Details

  • Manufacturer Part Number:

    JCG1524D15

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    Module-9

  • Pin Count:

    24/9

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    6

  • Additional Feature:

    SEATED HGT-NOM; ADDITIONAL -15 VOLT OUTPUT VOLTAGE ALSO AVAILABLE

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-P9

  • Length:

    31.75 mm

  • Load Regulation-Max:

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    15.15 V

  • Output Voltage-Min:

    14.85 V

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    10.16 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    15 W

  • Trim/Adjustable Output:

    NO

  • Width:

    20.32 mm

JCG1524D15 Frequently Asked Questions (FAQs)

  • XP Power recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
  • To ensure EMC, XP Power recommends following the guidelines in the datasheet for input and output filtering, and using a metal enclosure with proper shielding and grounding to minimize electromagnetic interference.
  • The derating curve for the JCG1524D15 is not explicitly stated in the datasheet, but XP Power recommends derating the output power by 1% per 1,000 feet above sea level to ensure reliable operation.
  • Yes, the JCG1524D15 can be used in a redundant or parallel configuration, but XP Power recommends consulting with their application engineers to ensure proper design and implementation to avoid any potential issues.
  • The MTBF for the JCG1524D15 is not explicitly stated in the datasheet, but XP Power provides a calculation method in their reliability handbook, which can be requested from their technical support team.
