JCK3012D15 - XP POWER

Description: XP Power JCK 30W Isolated DC-DC Converter Through Hole, Vin 9 → 18 V dc, Vout ±15V dc, I/O isolation 1.6kV dc

Download JCK3012D15 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

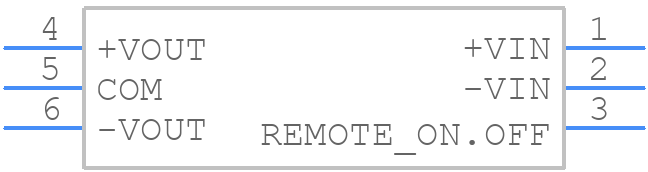

Symbol
JCK3012D15 - XP POWER - PCB symbol
click to zoom

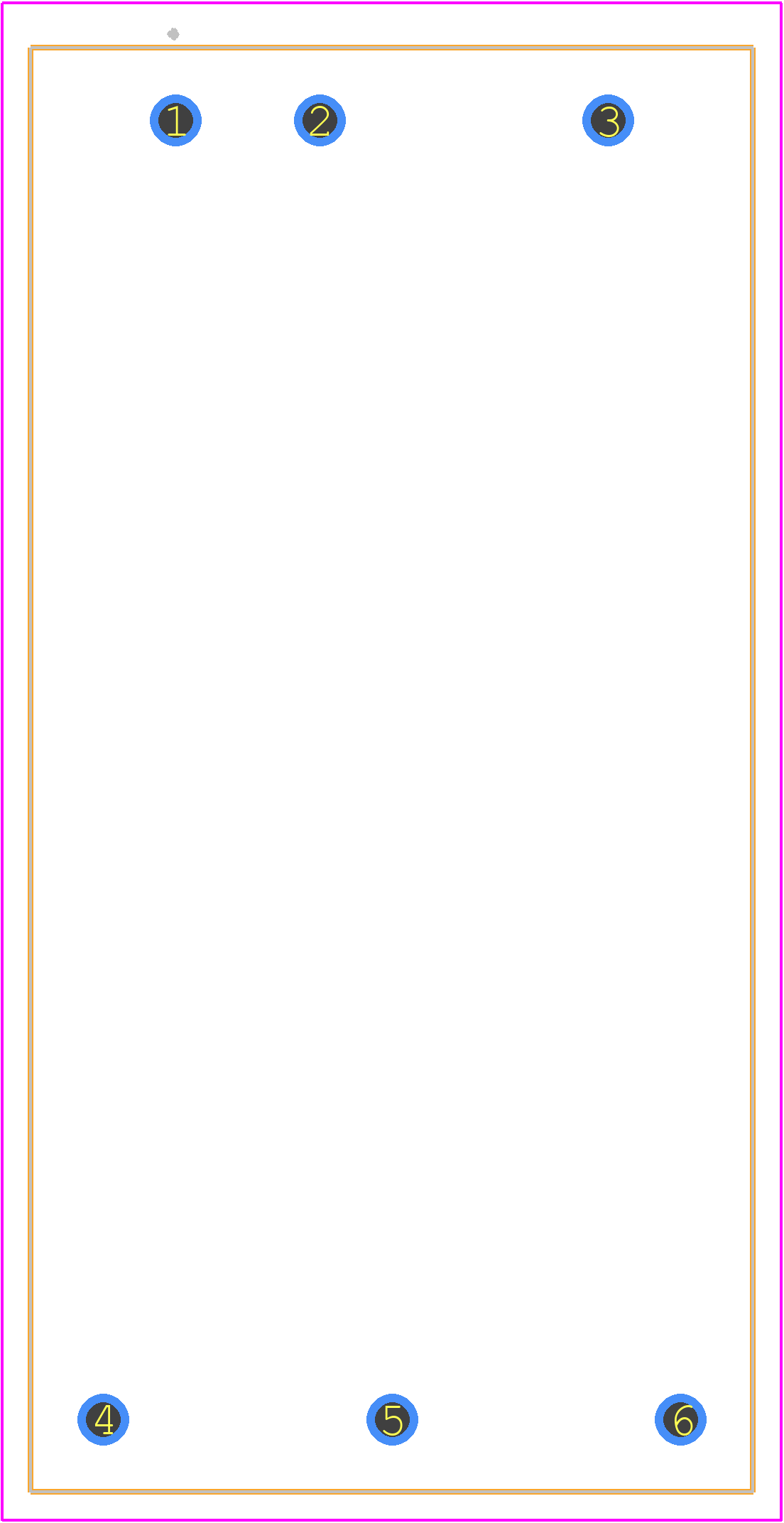

PCB Footprints
JCK3012D15 - XP POWER PCB footprint - Other - Other - JCK3012D15
click to zoom
3D Models
JCK3012D15 - XP POWER - 3D model - Other - JCK3012D15
click to zoom

JCK3012D15 Details

  • Manufacturer Part Number:

    JCK3012D15

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    6

  • Additional Feature:

    ALSO AVAILABLE OUTPUT VOLTAGE: -15V; SEATED HGT CALCULATED

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XDMA-T6

  • Length:

    50.8 mm

  • Load Regulation-Max:

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    50 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    15.15 V

  • Output Voltage-Min:

    14.85 V

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    10.66 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    30 W

  • Trim/Adjustable Output:

    NO

  • Width:

    25.4 mm

JCK3012D15 Frequently Asked Questions (FAQs)

  • XP Power recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
  • To ensure EMC, XP Power recommends following the layout and grounding guidelines in the datasheet, using a metal enclosure, and adding EMI filters and shielding as necessary to meet relevant EMC standards.
  • The derating curve for the JCK3012D15 is not explicitly stated in the datasheet, but XP Power recommends derating the output power by 2.5% per °C above 50°C to ensure reliable operation.
  • Yes, the JCK3012D15 is designed to meet the vibration requirements of IEC 60068-2-6, but XP Power recommends additional mechanical fixation and stress testing to ensure reliability in extreme vibration environments.
  • The MTBF of the JCK3012D15 is not explicitly stated in the datasheet, but XP Power estimates it to be around 1.5 million hours at 25°C, based on MIL-HDBK-217F calculations.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

JCK3012D15 Overview

Use the download button to access the JCK3012D15 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JCK30, or try a keyword search, such as Power Supply Modules
