JCK3012S05 - XP POWER

Description: XP POWER - JCK3012S05 - Isolated Through Hole DC/DC Converter, 2:1 Input, ITE, 2:1, 30 W, 1 Output, 5 V, 6 A

Download JCK3012S05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

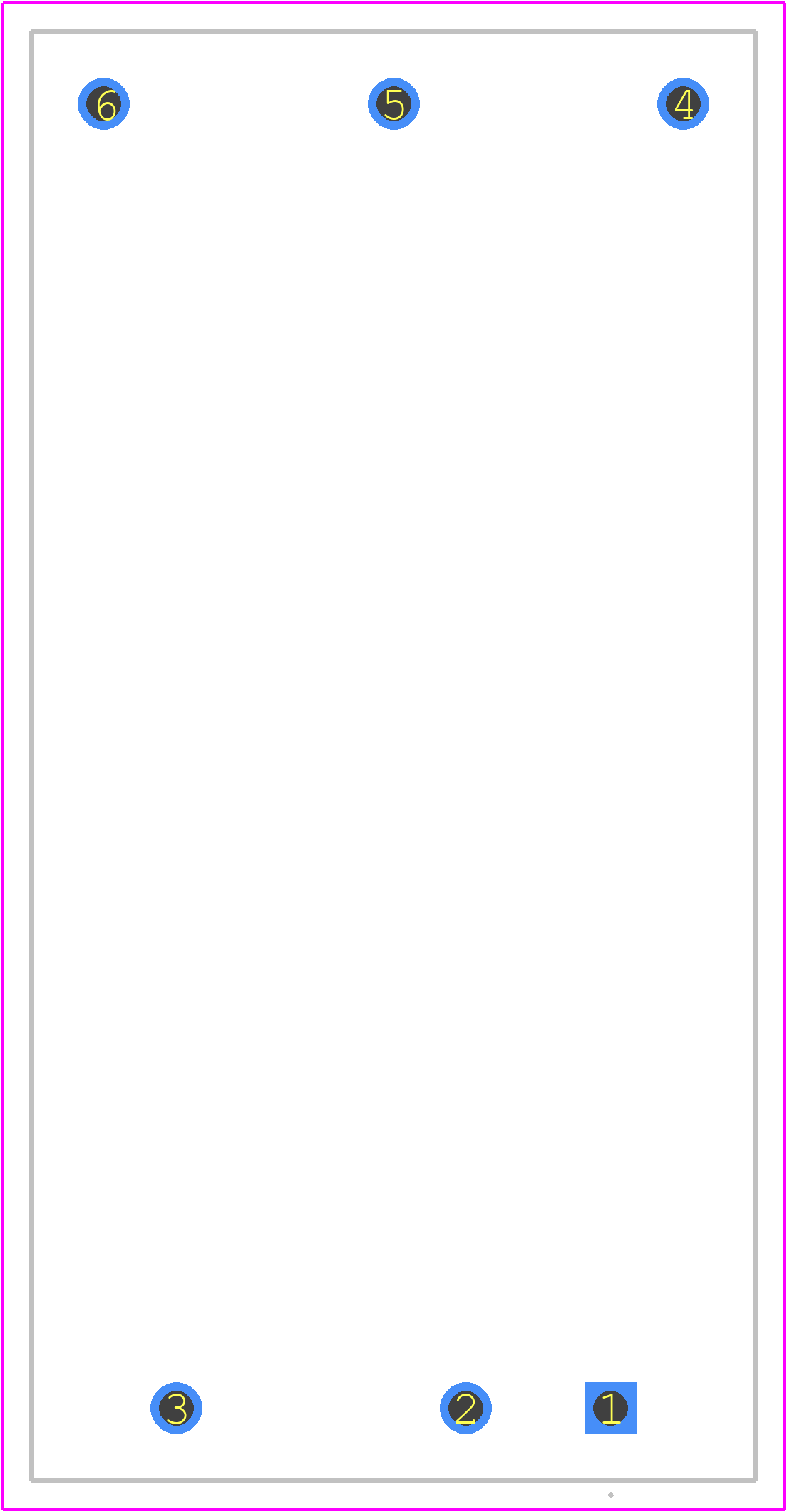

JCK3012S05 - XP POWER PCB footprint - Other - Other - JCK3012S05-2
click to zoom
3D Models
JCK3012S05 - XP POWER  - 3D model - Other - JCK3012S05-2
click to zoom

JCK3012S05 Details

  • Manufacturer Part Number:

    JCK3012S05

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    6

  • Additional Feature:

    SEATED HGT CALCULATED

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XDMA-T6

  • Length:

    50.8 mm

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    50 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    4.5 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    10.66 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    30 W

  • Trim/Adjustable Output:

    YES

  • Width:

    25.4 mm

JCK3012S05 Frequently Asked Questions (FAQs)

  • XP Power recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
  • To ensure EMC, XP Power recommends following the layout and grounding guidelines in the datasheet, using a metal enclosure, and adding EMI filters and shielding as necessary to meet relevant EMC standards.
  • The derating curve for JCK3012S05 is typically provided in the datasheet or can be obtained from XP Power's application notes. It shows the reduction in output power as a function of temperature, and engineers should use this curve to ensure the module operates within its specified ratings.
  • While the JCK3012S05 is designed to meet standard vibration and shock requirements, XP Power recommends consulting their application notes and performing additional testing to ensure the module meets the specific requirements of the target environment.
  • XP Power recommends using low-ESR capacitors with a voltage rating that meets or exceeds the input and output voltage ratings of the module. The specific capacitor values and types may vary depending on the application, and engineers should consult the datasheet and application notes for guidance.
