JF15RP2CC - NKK Switches

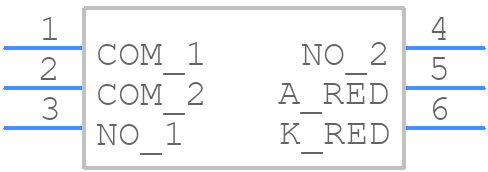

JF15RP2CC Details

• Manufacturer Part Number:

  JF15RP2CC

• Brand Name:

  NKK Switches

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.40

• Manufacturer:

  NKK Switches

• YTEOL:

  7.9

• Actuator Color:

  RED

• Actuator Material:

  POLYAMIDE

• Actuator Travel:

  0.4 mm

• Actuator Type:

  ROUND TYPE

• Additional Feature:

  RECT. HSNG.&RD. ACTU., RED LED

• Body Breadth:

  17.7 mm

• Body Height:

  5.7 mm

• Body Length or Diameter:

  22.8 mm

• Center Contact Material:

  PHOSPHOR BRONZE

• Center Contact Plating:

  SILVER

• Circuit Configuration:

  1X1

• Contact Current(DC)-Max:

  0.05 A

• Contact (DC) Max Rating R Load:

  0.05A@24VDC

• Contact Function:

  OFF-(ON)

• Contact Resistance:

  0.05 mΩ

• Contact Timing:

  BREAK-BEFORE-MAKE

• Contact Voltage(DC)-Max:

  24 V

• Dielectric Withstand Volts:

  250VAC V

• Electrical Life:

  500000 Cycle(s)

• End Contact Material:

  BRASS

• End Contact Plating:

  SILVER

• Illumination:

  RED LED

• Insulation Resistance:

  500000000 Ω

• Insulator Material:

  GLASS FILLED POLYESTER

• JESD-609 Code:

  e4

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Switches:

  1

• Operating Force-Max:

  3 N

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -25 °C

• PCB Hole Count:

  6

• Sealing:

  ENVIRONMENTALLY SEALED

• Solderability:

  HAND/WAVE

• Surface Mount:

  NO

• Switch Action:

  MOMENTARY

• Switch Function:

  SPST

• Switch Type:

  KEYPAD SWITCH

• Terminal Finish:

  SILVER

• Terminal Length:

  0.142 inch

• Terminal Material:

  BRASS

• Termination Type:

  SOLDER

• Washability:

  SOLVENT
