JJLV0UG840NOPPRTR - TE Connectivity

Description: Body Features: Actuator Force 35 G | Actuator Material Thermoplastic | Product Orientation Vertical | Actuator Force 1.23 OZ | Configuration Features: Switch Feedback Type Non-Tactile | Number of Actuators Single | Ganged Without | Configuration (Pole-Throw) Single Pole - Single Throw | ESD Grounding Terminal Without | Operating Function Off (On) | Contact Features: Contact Current Rating 5 MAMP | Switch Contact Plating Material Silver | Contact Base Material Stainless Steel | Housing Features: Process Seal

Download JJLV0UG840NOPPRTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

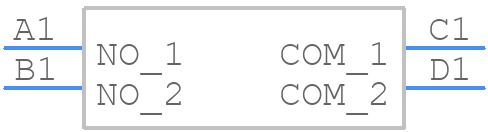

JJLV0UG840NOPPRTR - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

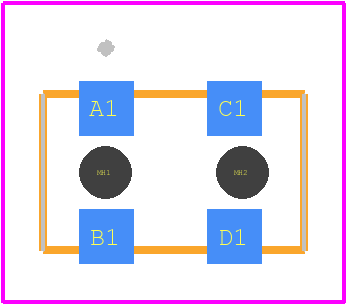

JJLV0UG840NOPPRTR - TE Connectivity PCB footprint - Other - Other - JJLV0UG840NOPPRTR-4
click to zoom
3D Models
JJLV0UG840NOPPRTR - TE Connectivity - 3D model - Other - JJLV0UG840NOPPRTR-4
click to zoom

JJLV0UG840NOPPRTR Details

  • Manufacturer Part Number:

    JJLV0UG840NOPPRTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Factory Lead Time:

    8 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

JJLV0UG840NOPPRTR Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the TE Connectivity application notes.
  • Yes, the JJLV0UG840NOPPRTR is designed to withstand vibrations up to 10G, making it suitable for use in high-vibration environments.
  • The operating temperature range for the JJLV0UG840NOPPRTR is -40°C to 125°C, as specified in the datasheet.
  • Yes, the JJLV0UG840NOPPRTR is designed to meet the requirements of IEC 61984 and is suitable for use in harsh environments, including those with high humidity and salt spray.
  • While the datasheet specifies 24 AWG wire, the connector can accommodate wire sizes from 20 AWG to 28 AWG, but the wire stripping length and insulation diameter may need to be adjusted accordingly.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

JJLV0UG840NOPPRTR Overview

Use the download button to access the JJLV0UG840NOPPRTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JJLV0, or try a keyword search, such as Snap Acting/Limit Switches
