JL82599ES S R1VN footprint, schematic symbol and 3D model by Intel

JL82599ES S R1VN - Intel

Description: Descriptor ring management hardware for transmit and receive  ACPI register set and power down functionality supporting D0 and D3 states  A mechanism for delaying/reducing transmit interrupts  Software-controlled global reset bit (resets everything except the configuration registers)  Eight Software-Definable Pins (SDP) per port  Four of the SDP pins can be configured as general-purpose interrupts  Wake up  Ipv6 wake-up filters  Configurable flexible filter (through EEPROM)  LAN functio

Download JL82599ES S R1VN Model

Schematic
symbols

PCB
footprints

3D
models

Symbol

click to zoom

PCB Footprints

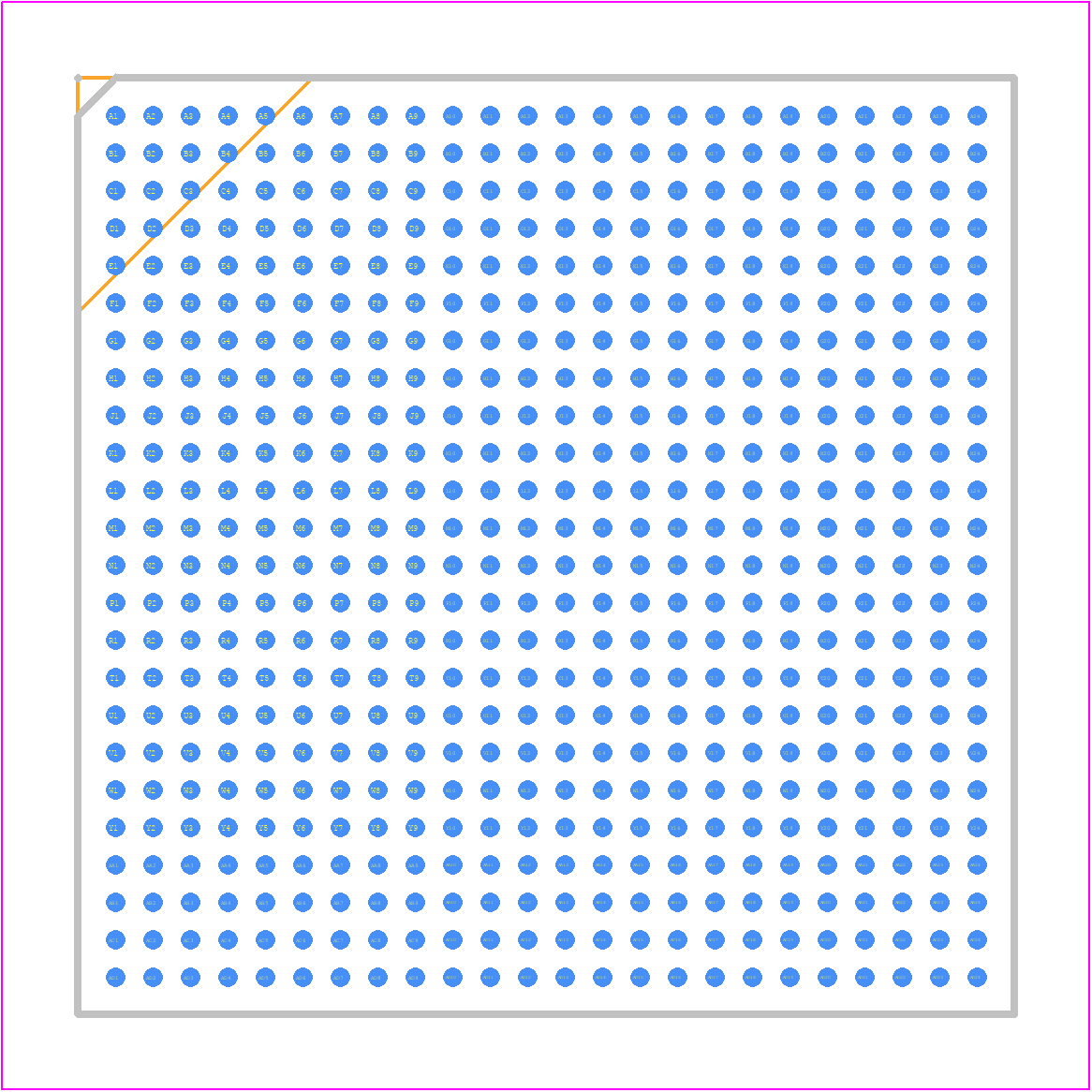

JL82599ES S R1VN - Intel PCB footprint - BGA - BGA - BGA-576..

click to zoom

3D Models

JL82599ES S R1VN - Intel - 3D model - BGA - BGA-576..

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for JL82599ES S R1VN
Part Number JL82599ES S R1VN
Manufacturer Intel
Pin Count 576
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - BGA-576..
Released Date Mar 7, 2025
Last Modified Date Mar 7, 2025 7:14 AM UTC
Pinout / Pin List Click Here (Member Only)

JL82599ES S R1VN Details

Manufacturer Part Number:
JL82599ES S R1VN
Manufacturer:
Intel Corporation

Trust Checks

Community Provided

System Verified

Community Approved

JL82599ES S R1VN Overview

Use the download button to access the JL82599ES S R1VN schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like JL825, or try a keyword search, such as Serial IO/Communication Controllers
