The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent thermal damage to the thermistor.
While the JM1AN-TMP-DC5V-F is designed to operate in a wide range of temperatures, it is not recommended for use in humid environments as it may affect its accuracy and reliability. If you need to use it in a humid environment, consider using a thermistor with a higher humidity rating or taking additional measures to protect the device.
To prevent damage, store the JM1AN-TMP-DC5V-F in a dry, cool place away from direct sunlight and moisture. During transportation, use a protective packaging material to prevent mechanical shock and vibration.
The typical response time of the JM1AN-TMP-DC5V-F is around 10-15 seconds, which is relatively fast compared to other thermistors. This makes it suitable for applications that require quick temperature measurements.
While the JM1AN-TMP-DC5V-F has a high accuracy rating, it is not suitable for high-precision temperature measurement applications that require an accuracy of ±0.1°C or better. For such applications, consider using a higher-precision thermistor or a different type of temperature sensor.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
JM1AN-TMP-DC5V-F Overview

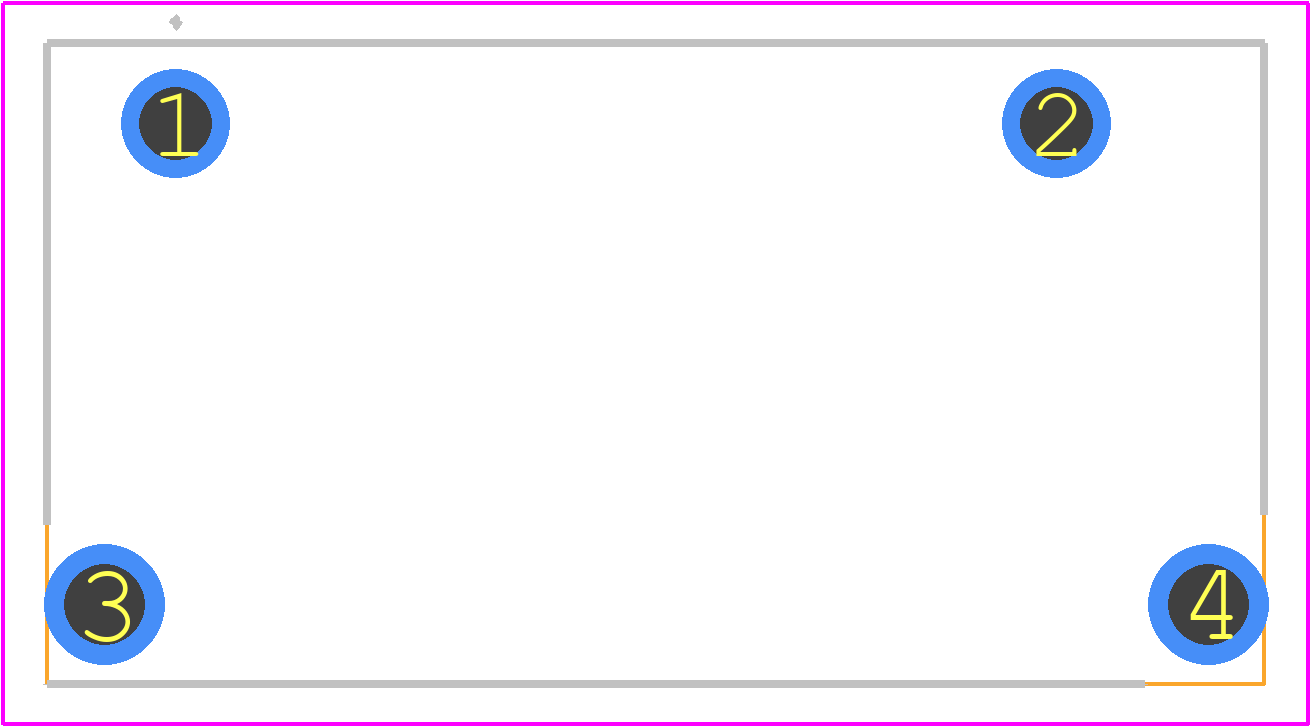

Use the download button to access the JM1AN-TMP-DC5V-F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JM1AN,
or try a keyword search, such as Power/Signal Relays
