JM1AN-TMP-DC6V-F - Panasonic

Description: JM RELAY 1 FORM A 6VDC

Download JM1AN-TMP-DC6V-F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
JM1AN-TMP-DC6V-F - Panasonic - PCB symbol
click to zoom
PCB Footprints

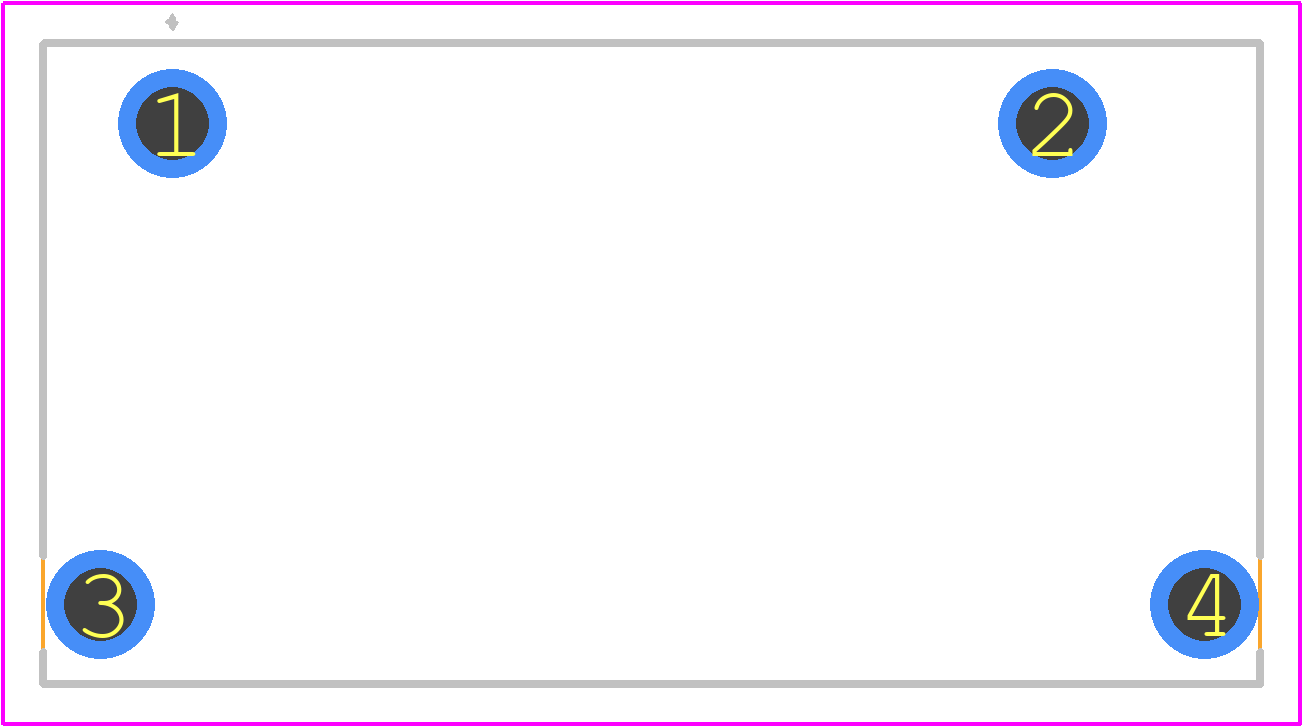

JM1AN-TMP-DC6V-F - Panasonic PCB footprint - Other - Other - JM1AN-TMP-DC6V-F-2
click to zoom
3D Models
JM1AN-TMP-DC6V-F - Panasonic - 3D model - Other - JM1AN-TMP-DC6V-F-2
click to zoom

JM1AN-TMP-DC6V-F Details

  • Manufacturer Part Number:

    JM1AN-TMP-DC6V-F

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    0

  • Body Breadth:

    16 mm

  • Body Height:

    26.5 mm

  • Body Length or Diameter:

    30.4 mm

  • Coil Current(DC)-Max:

    0.15 A

  • Coil Operate Voltage(DC):

    4.2 V

  • Coil Power:

    900 mW

  • Coil Release Voltage(DC):

    0.6 V

  • Coil Resistance:

    40 Ω

  • Coil Voltage(DC)-Max:

    6 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    20A@250VAC

  • Contact Current(AC)-Max:

    20 A

  • Contact Voltage(AC)-Max:

    250 V

  • Contact/Output Supply Type:

    AC

  • Electrical Life:

    100000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    20 ms

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX

  • Physical Dimension:

    30.4mm x 16mm x 26.5mm

  • Reference Standard:

    CSA; TUV; UL; VDE

  • Relay Action:

    MOMENTARY

  • Relay Function:

    SPST

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    10 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER/QUICK CONNECT
