The recommended operating temperature range for JM38510/05653BEA is -55°C to 125°C, although the device can withstand storage temperatures from -65°C to 150°C.
To ensure reliability, follow Texas Instruments' recommended assembly and soldering procedures, and consider using a hermetic package option. Additionally, perform thorough testing and screening, including burn-in and environmental stress screening, to detect any potential defects or weaknesses.
JM38510/05653BEA is designed to be radiation-hardened, with a total dose radiation tolerance of 100 krad (Si) and a single-event latchup (SEL) immunity of 80 MeV-cm²/mg. However, the exact radiation hardness capabilities may vary depending on the specific application and environment.
Yes, although JM38510/05653BEA is a military-grade component, it can be used in non-military or commercial applications where high-reliability and radiation-hardened components are required, such as in aerospace, industrial, or medical devices.
The main differences between JM38510/05653BEA and LM385 are the operating temperature range, radiation hardness, and packaging. JM38510/05653BEA has a wider operating temperature range, is radiation-hardened, and is available in a hermetic package, whereas LM385 is a commercial-grade component with a narrower operating temperature range and no radiation hardening.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
JM38510/05653BEA Overview

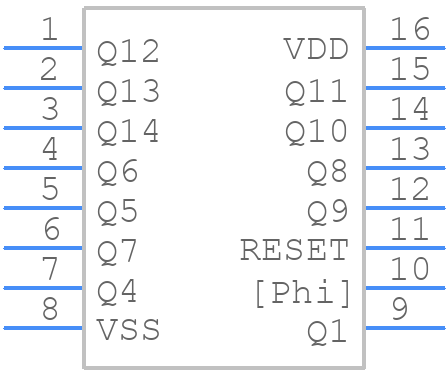

Use the download button to access the JM38510/05653BEA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JM385,
or try a keyword search, such as Counters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
