The recommended operating temperature range for JM38510/30608BEA is -55°C to 125°C, although the device can withstand storage temperatures from -65°C to 150°C.
To ensure reliability, follow proper handling and storage procedures, use a clean and controlled environment, and adhere to recommended soldering and assembly practices. Additionally, consider using radiation-hardened or radiation-tolerant versions of the device for space or high-radiation applications.
JM38510/30608BEA is commonly used in military, aerospace, and high-reliability applications, such as navigation systems, communication equipment, and radar systems, due to its high performance, low power consumption, and radiation tolerance.
To troubleshoot issues, start by reviewing the datasheet and application notes, then check the device's power supply, clock signals, and input/output connections. Use oscilloscopes and logic analyzers to debug the circuit, and consider consulting with Texas Instruments' technical support or a qualified engineer.
Yes, to minimize noise and ensure signal integrity, follow proper PCB layout and routing practices, such as separating analog and digital signals, using ground planes, and minimizing trace lengths and impedance mismatches.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
JM38510/30608BEA Overview

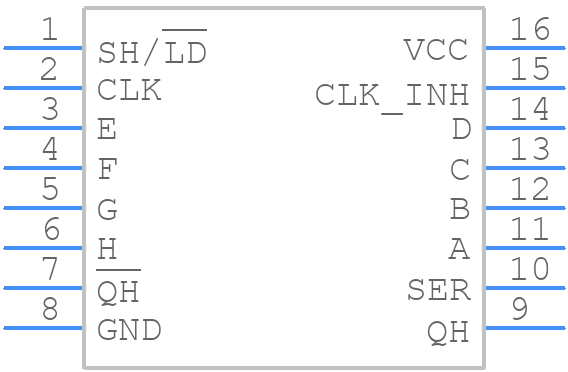

Use the download button to access the JM38510/30608BEA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JM385,
or try a keyword search, such as Shift Registers
