JMGACDD-26LW - TE Connectivity

Description: General Purpose Signal Relay, DC, Non-Polarized, Monostable, 2 Form C DPDT-CO, 1 A Contact Rating, 26.5 VDC Coil Voltage, .45 W Coil Power

Download JMGACDD-26LW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

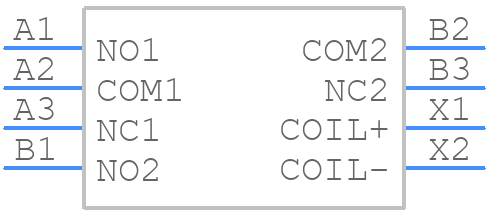

Symbol
JMGACDD-26LW - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
JMGACDD-26LW - TE Connectivity PCB footprint - Other - Other - JMGACDD-26LW-2
click to zoom
3D Models
JMGACDD-26LW - TE Connectivity - 3D model - Other - JMGACDD-26LW-2
click to zoom

JMGACDD-26LW Details

  • Manufacturer Part Number:

    JMGACDD-26LW

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.20

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6

  • Coil Power:

    450 mW

  • Coil Resistance:

    1560 Ω

  • Coil Voltage(DC)-Max:

    26.5 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(AC)-Max:

    1 A

  • Contact Current(DC)-Max:

    1 A

  • Contact Voltage(AC)-Max:

    28 V

  • Contact Voltage(DC)-Max:

    28 V

  • Mounting Feature:

    PANEL MOUNT

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -65 °C

  • Relay Action:

    MOMENTARY

  • Relay Form:

    2 FORM C

  • Relay Function:

    DPDT-CO

  • Relay Type:

    POWER/SIGNAL RELAY

  • Sealing:

    HERMETICALLY SEALED

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER/QUICK CONNECT

JMGACDD-26LW Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm (0.37 lb-in to 1.06 lb-in).
  • Yes, the JMGACDD-26LW is designed to withstand high-vibration environments, making it suitable for use in industrial, automotive, and aerospace applications.
  • While the connector is optimized for 26 AWG wire, it can accommodate wire sizes ranging from 24 AWG to 28 AWG, but the wire stripping length and insulation diameter may need to be adjusted accordingly.
  • The JMGACDD-26LW connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F).
  • Yes, the connector is designed to be resistant to moisture and chemicals, with a rating of IP67 (dust-tight and protected against immersion in water up to 1 meter for 30 minutes).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

JMGACDD-26LW Overview

Use the download button to access the JMGACDD-26LW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JMGAC, or try a keyword search, such as Power/Signal Relays

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
