JN5189THN/001Z - NXP

Description: 802.15.4/ZigBee SOC 2485MHz 40-Pin HVQFN EP T/R

Download JN5189THN/001Z Model

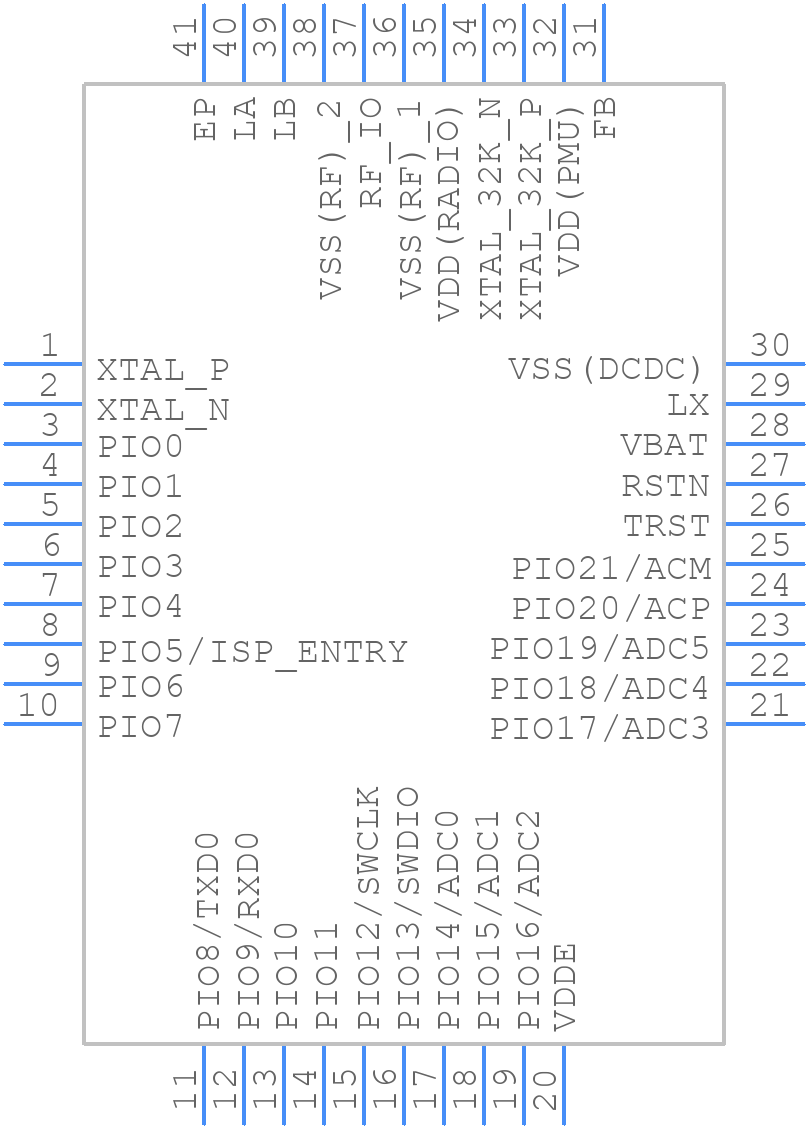

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
JN5189THN/001Z - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HVQFN-40
click to zoom
3D Models
JN5189THN/001Z - NXP  - 3D model - Quad Flat No-Lead - HVQFN-40
click to zoom

JN5189THN/001Z Details

  • Manufacturer Part Number:

    JN5189THN/001Z

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

JN5189THN/001Z Overview

Use the download button to access the JN5189THN/001Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JN518, or try a keyword search, such as Microcontrollers

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
