JODY-W263-00A - u-blox

Description: Bluetooth, WiFi 802.11a/b/g/n/ac, Bluetooth v5.2 Transceiver Module 2.4GHz, 5GHz Antenna Not Included Surface Mount

Download JODY-W263-00A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
JODY-W263-00A - u-blox - PCB symbol
click to zoom
PCB Footprints

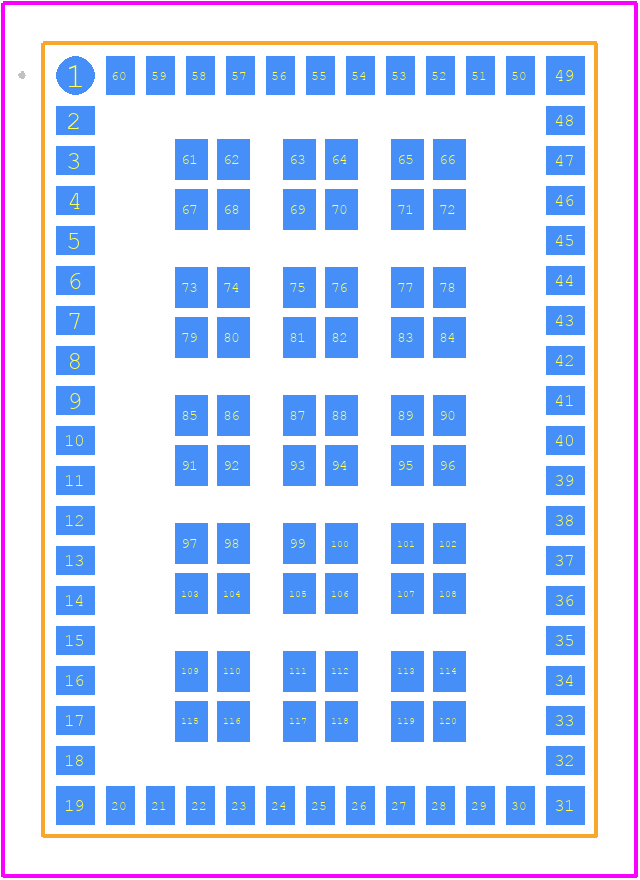

JODY-W263-00A - u-blox PCB footprint - Other - Other - JODY-W263-00A-4
click to zoom
3D Models
JODY-W263-00A - u-blox - 3D model - Other - JODY-W263-00A-4
click to zoom

JODY-W263-00A Details

  • Manufacturer Part Number:

    JODY-W263-00A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-10-29

  • Manufacturer:

    u-blox AG

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

JODY-W263-00A Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to first apply the power supply voltage (VCC) and then apply the enable signal (PWR_EN). This ensures proper initialization of the module.
  • The UART interface can be configured using the AT commands. The module supports baud rates from 1200 to 921600 bps. The default baud rate is 115200 bps.
  • The typical current consumption of the JODY-W263-00A module is around 20-30 mA during continuous transmission and around 10-20 mA during standby mode.
  • Yes, the JODY-W263-00A module supports firmware updates through the UART interface using the u-blox AG's proprietary firmware update tool.
  • The operating temperature range of the JODY-W263-00A module is -40°C to +85°C.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

JODY-W263-00A Overview

Use the download button to access the JODY-W263-00A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JODY-, or try a keyword search, such as Other Telecom ICs
