XP Power recommends a PCB layout with a large copper area connected to the module's thermal pad to dissipate heat efficiently. A minimum of 1 oz copper thickness is recommended, and the copper area should be at least 1 inch x 1 inch in size.
Yes, the JSM1012S05 is designed to withstand high-vibration environments. It meets the IEC 60068-2-6 vibration test standard, which simulates vibrations up to 10G peak acceleration. However, it's essential to ensure proper mounting and screw torque to prevent damage.
To ensure reliability in high-temperature applications, XP Power recommends derating the module's output power according to the temperature derating curve provided in the datasheet. Additionally, ensure good airflow around the module, and consider using a heat sink or thermal interface material to reduce the junction temperature.
XP Power recommends using a fuse with a rating of 2A to 5A, depending on the specific application and input voltage. The fuse should be able to handle the module's peak inrush current, which is specified in the datasheet.
Yes, the JSM1012S05 can be used in a redundant or parallel configuration to achieve higher power output or redundancy. However, it's essential to ensure that the modules are properly synchronized and configured to prevent damage or instability.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
JSM1012S05 Overview

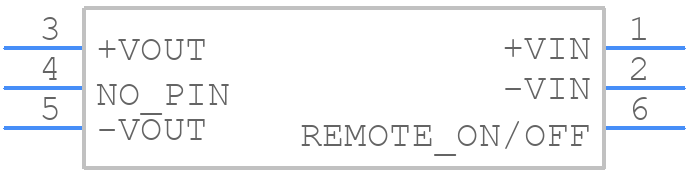

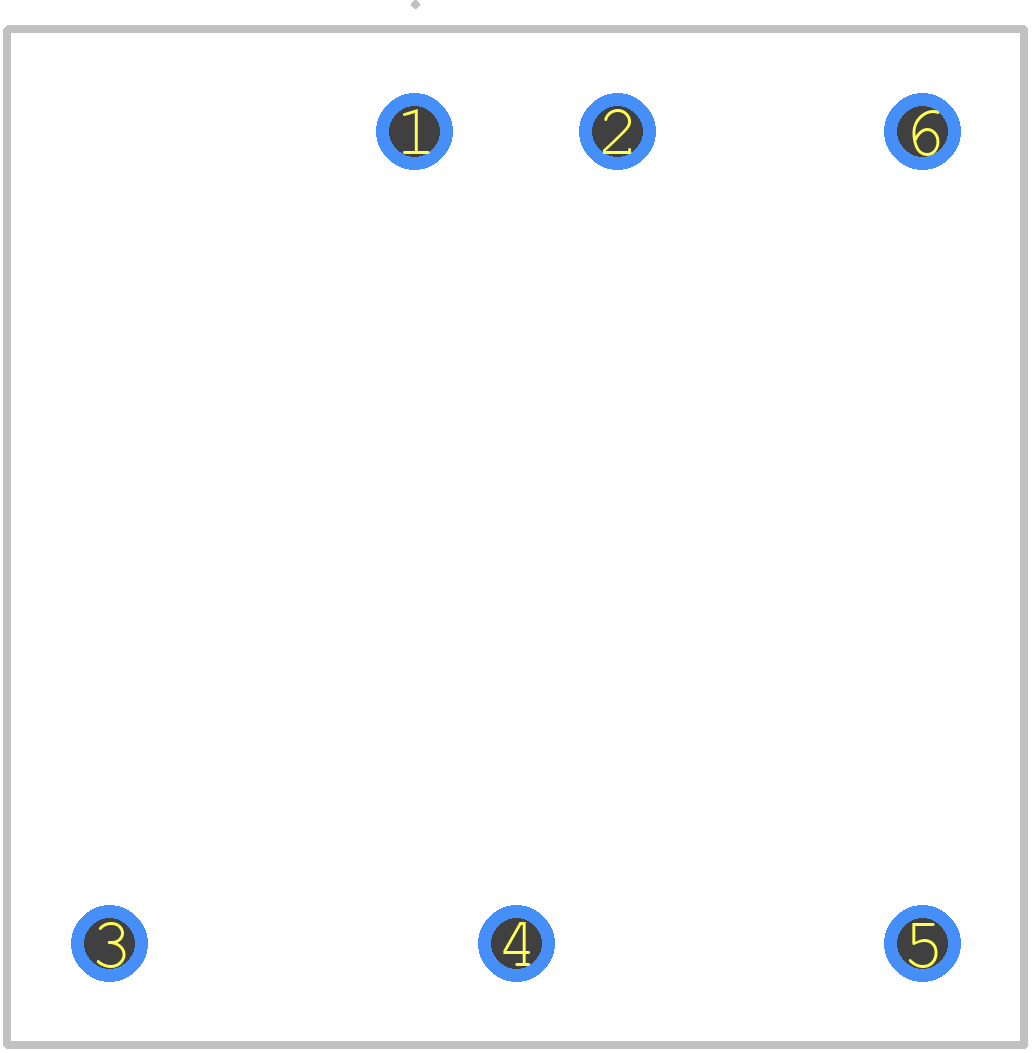

Use the download button to access the JSM1012S05 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like JSM10,
or try a keyword search, such as Power Supply Modules
