JSM1024S05 Frequently Asked Questions (FAQs)

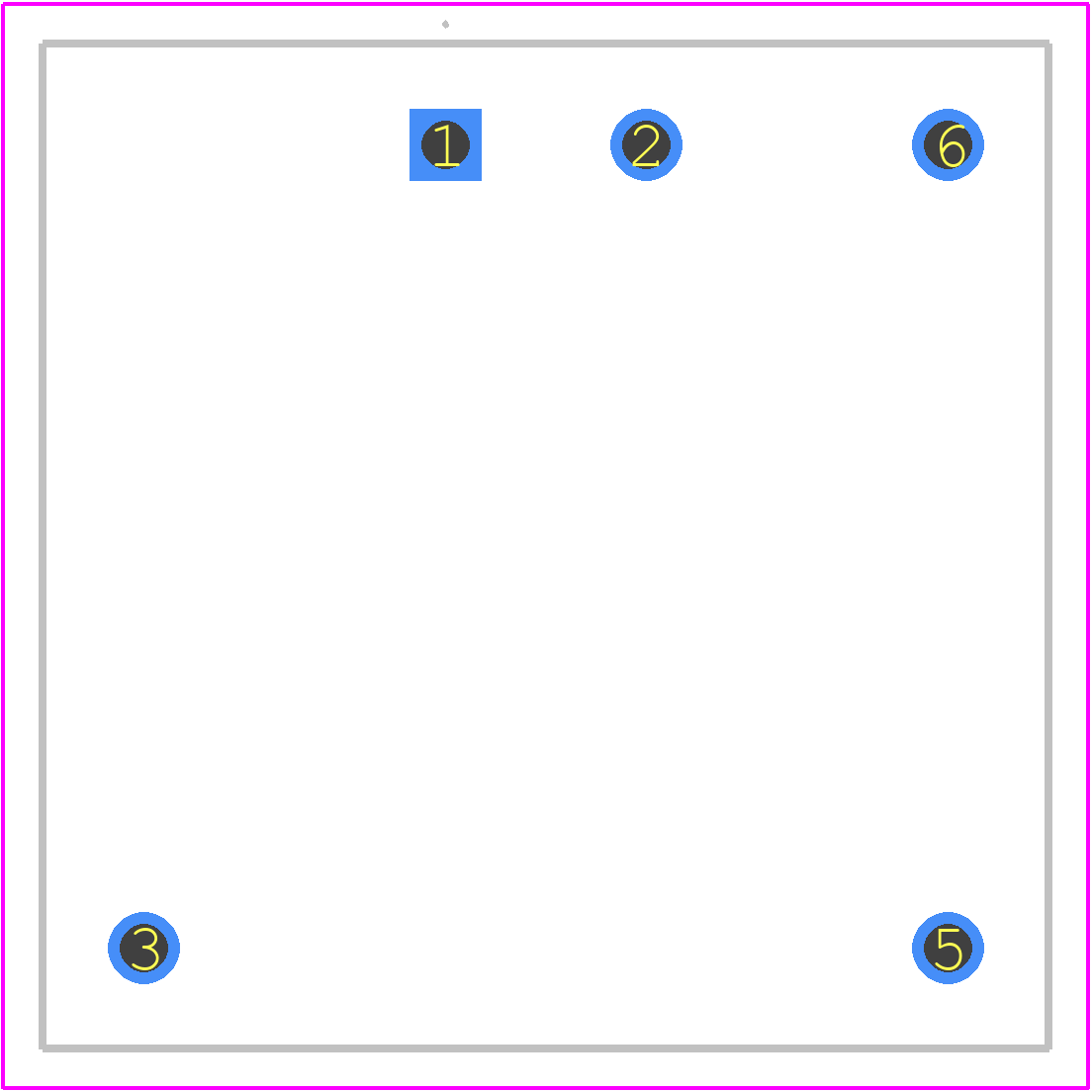

• What is the recommended PCB layout for optimal thermal performance?
  XP Power recommends a PCB layout with a large copper area connected to the module's thermal pad to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
• How do I ensure the module's input voltage stays within the recommended range?
  To ensure the input voltage stays within the recommended range of 36-75V, use a suitable input filter or voltage regulator to regulate the input voltage. Additionally, consider using a voltage monitoring circuit to detect any input voltage deviations and take corrective action if necessary.
• What is the maximum output capacitance I can use with this module?
  The maximum output capacitance recommended by XP Power is 2200uF. Exceeding this value may affect the module's stability and performance. It's essential to follow the recommended output capacitance to ensure reliable operation.
• Can I use this module in a high-temperature environment?
  The JSM1024S05 is rated for operation up to 80°C ambient temperature. However, derating the output power is necessary for temperatures above 60°C. Consult the datasheet for derating curves and ensure proper heat sinking to maintain reliable operation in high-temperature environments.
• How do I implement overcurrent protection with this module?
  The JSM1024S05 has an internal overcurrent protection (OCP) feature that will shut down the module in case of an overcurrent condition. To implement external OCP, use a suitable current sense resistor and a comparator circuit to detect overcurrent conditions and shut down the module or take corrective action.
