JTB0524S12 - XP POWER

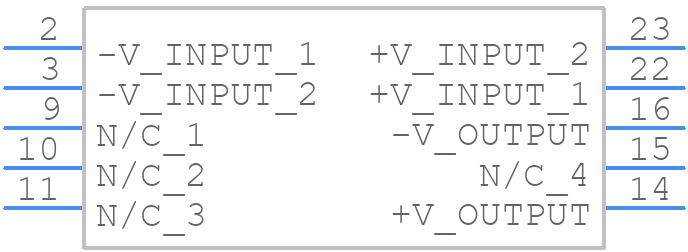

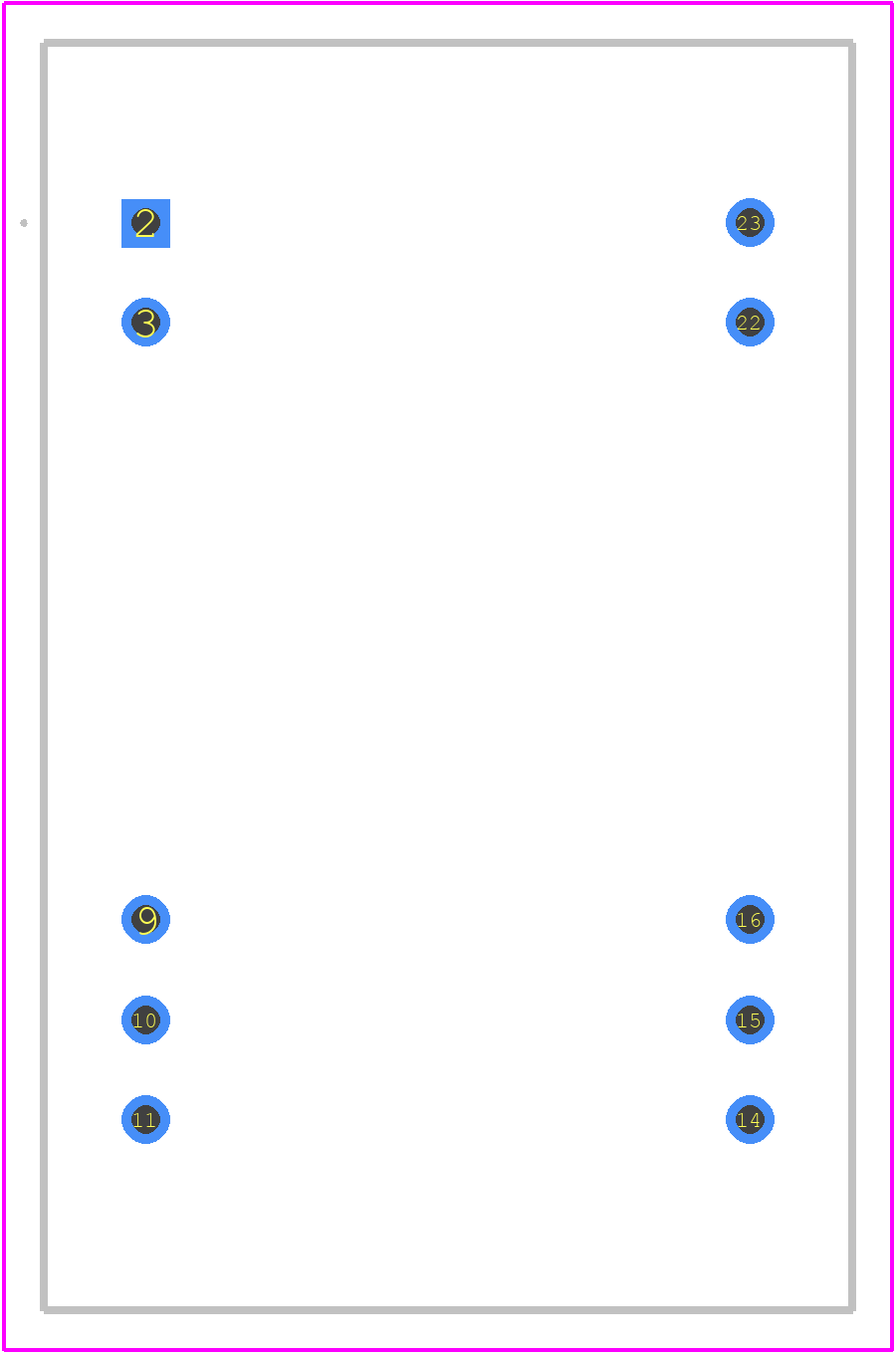

JTB0524S12 Details

• Manufacturer Part Number:

  JTB0524S12

• Rohs Code:

  Yes

• Part Life Cycle Code:

  End Of Life

• Package Description:

  DIP-24/14

• ECCN Code:

  EAR99

• Manufacturer:

  XP Power

• YTEOL:

  0

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  EN

• Efficiency (Main Output):

  80%

• Input Voltage-Max:

  36 V

• Input Voltage-Min:

  9 V

• Input Voltage-Nom:

  24 V

• JESD-30 Code:

  R-MDIP-P14

• Length:

  31.8 mm

• Line Regulation-Max:

  0.5%

• Load Regulation-Max:

  0.5%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  14

• Operating Temperature-Max:

  100 °C

• Operating Temperature-Min:

  -25 °C

• Output Current-Max:

  0.4 A

• Output Voltage-Max:

  12.24 V

• Output Voltage-Min:

  11.76 V

• Output Voltage-Nom:

  12 V

• Package Body Material:

  METAL

• Package Code:

  DIP

• Package Equivalence Code:

  DIP14/24,.6,98

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Protections:

  OVER CURRENT, SHORT CIRCUIT

• Ripple Voltage (Main Out):

  0.1 Vrms

• Seated Height-Max:

  10.2 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Temperature Grade:

  OTHER

• Terminal Form:

  PIN/PEG

• Terminal Pitch:

  2.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Total Power Output-Max:

  5 W

• Trim/Adjustable Output:

  NO

• Warm-up Time:

  0.125 s

• Width:

  20.3 mm
