JTF1224D12 - XP POWER

Description: XP Power Through Hole 12W Isolated DC-DC Converter, Vin 9 → 36 V dc, I/O isolation 1.6kV dc, Vout 12V dc

Download JTF1224D12 Model

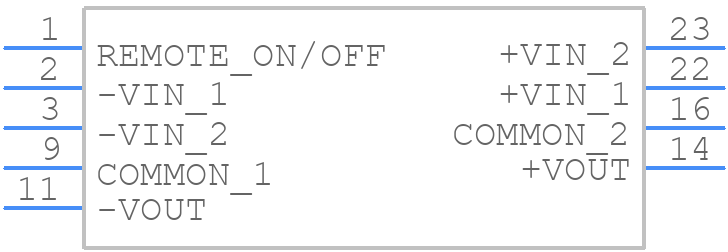

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
JTF1224D12 - XP POWER PCB footprint - Other - Other - JTF1024D15
click to zoom

JTF1224D12 Details

  • Manufacturer Part Number:

    JTF1224D12

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Pin Count:

    24/9

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    6

  • Additional Feature:

    ADDITIONAL -12 VOLT OUTPUT VOLTAGE ALSO AVAILABLE

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-P9

  • Length:

    31.75 mm

  • Load Regulation-Max:

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    12.144 V

  • Output Voltage-Min:

    11.856 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    10.66 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    12 W

  • Trim/Adjustable Output:

    NO

  • Width:

    20.32 mm

JTF1224D12 Frequently Asked Questions (FAQs)

  • XP Power recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure optimal heat dissipation.
  • To ensure reliable start-up, XP Power recommends using a soft-start circuit or a voltage ramp-up circuit to reduce inrush current and prevent overheating during start-up.
  • The maximum capacitive load is 10,000 μF. Exceeding this value may cause instability or oscillation in the output voltage.
  • Yes, the JTF1224D12 can be used in a redundant configuration, but it's essential to ensure that the units are synchronized and that the output voltages are matched to prevent damage or instability.
  • XP Power recommends using a fuse with a rating of 5A to 10A, depending on the input voltage and current requirements of the application.
