XP Power recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
To ensure EMC, XP Power recommends following the guidelines in the datasheet for input and output filtering, and using a metal enclosure with proper shielding and grounding to minimize electromagnetic radiation.
The derating curve for the JTF1224S15 is not explicitly stated in the datasheet, but XP Power recommends consulting their application notes or contacting their technical support for specific guidance on derating at high altitudes or high temperatures.
Yes, the JTF1224S15 can be used in a redundant or parallel configuration, but XP Power recommends consulting their application notes or technical support for specific guidance on implementation and synchronization.
The MTBF rating for the JTF1224S15 is not explicitly stated in the datasheet, but XP Power provides a calculation method in their reliability handbook, which can be requested from their technical support.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
JTF1224S15 Overview

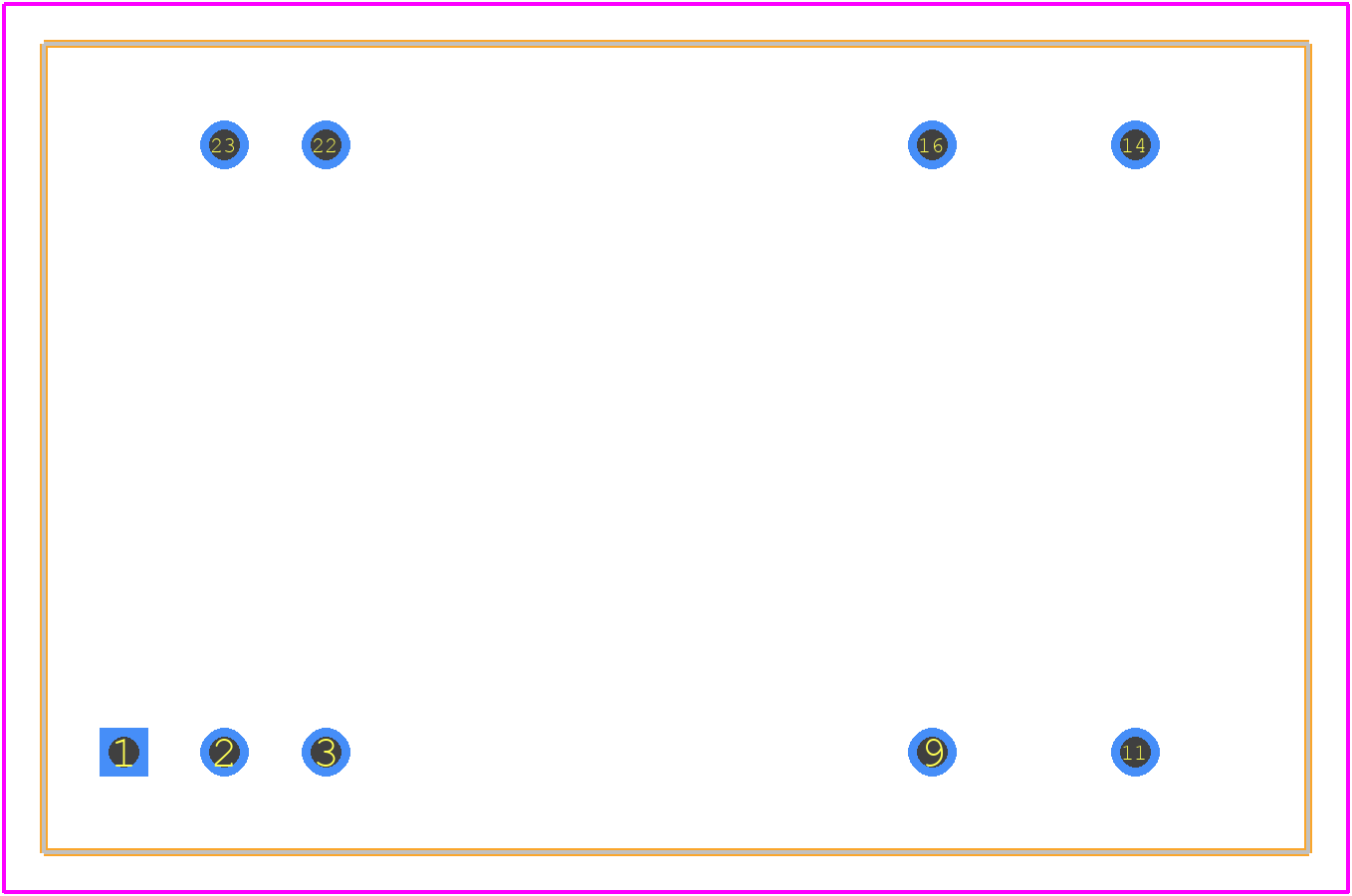

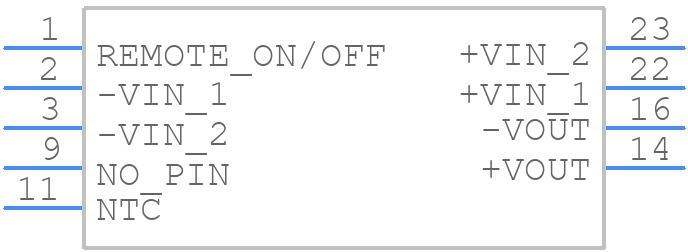

Use the download button to access the JTF1224S15 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JTF12,
or try a keyword search, such as Power Supply Modules
