XP Power recommends a PCB layout with a large copper area connected to the module's thermal pad to dissipate heat efficiently. A minimum of 1 oz copper thickness is recommended, and the copper area should be at least 1 inch x 1 inch in size.
Yes, the JTF1248S12 is designed to withstand high-vibration environments. It meets the IEC 60068-2-6 vibration test standard, which simulates vibrations up to 10 G peak acceleration. However, it's essential to ensure proper mounting and screw torque to prevent damage.
To ensure reliability in high-temperature applications, XP Power recommends derating the output power by 2.5% per degree Celsius above 40°C. Additionally, ensure good airflow around the module, and consider using a heat sink or thermal interface material to reduce thermal resistance.
XP Power recommends using a fuse with a rating of 5A to 10A, depending on the input voltage and system requirements. The fuse should be able to handle the module's peak inrush current, which is specified in the datasheet.
Yes, the JTF1248S12 can be used in redundant or parallel configurations to achieve higher power output or redundancy. However, it's essential to ensure that the modules are properly synchronized and configured to prevent damage or instability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
JTF1248S12 Overview

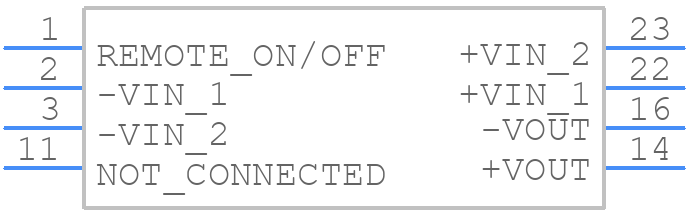

Use the download button to access the JTF1248S12 schematic symbol, PCB footprint, and 3D model.
