JTK2024S05 - XP POWER

Description: XP Power JTK 20W Isolated DC-DC Converter Through Hole, Vin 9 → 36 V dc, Vout 5V dc, I/O isolation 1.6kV dc

Download JTK2024S05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

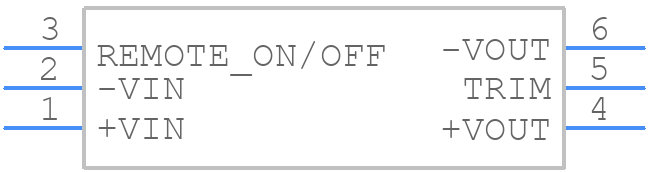

JTK2024S05 - XP POWER - PCB symbol
click to zoom
PCB Footprints

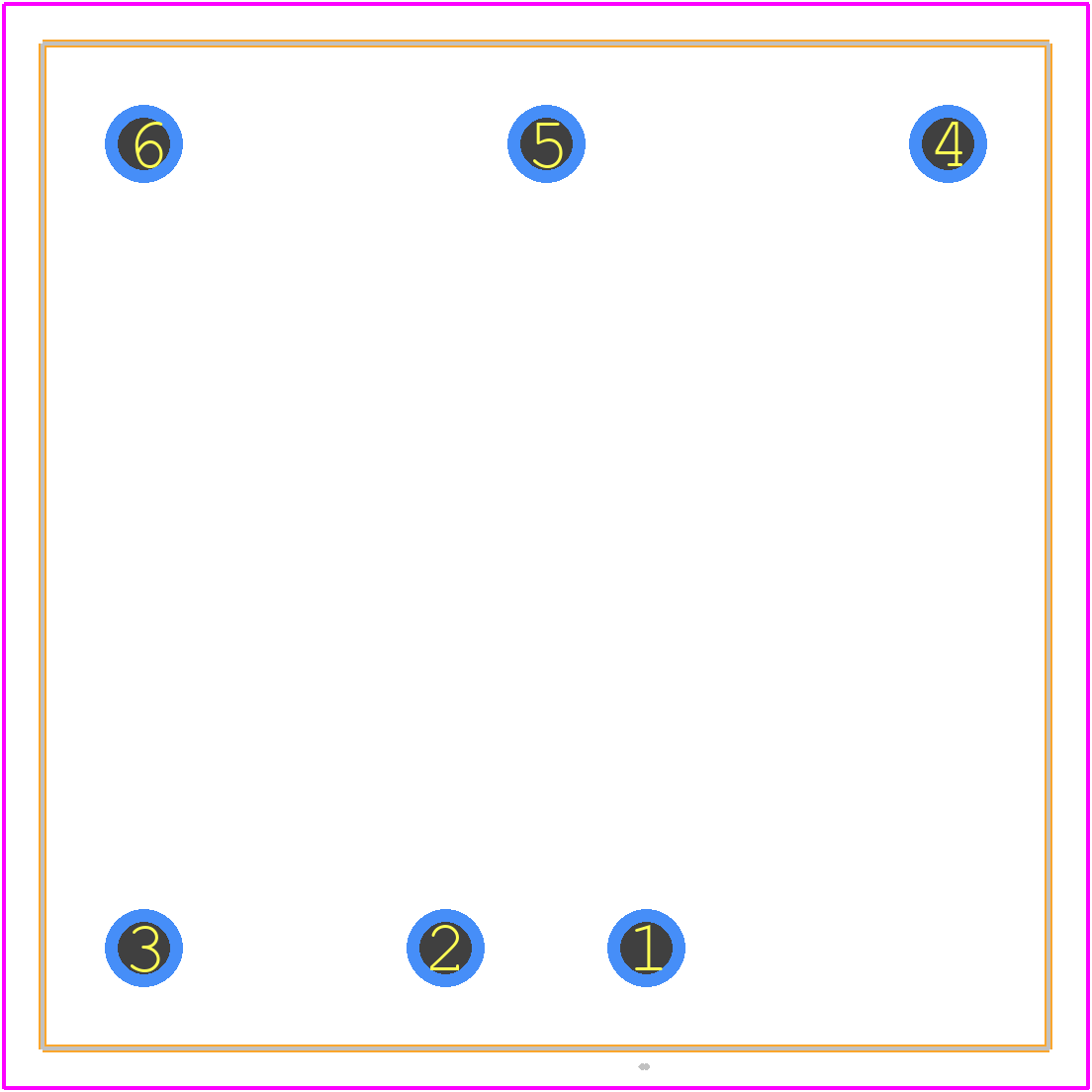

JTK2024S05 - XP POWER PCB footprint - Other - Other - JTK2024S05-2
click to zoom
3D Models
JTK2024S05 - XP POWER - 3D model - Other - JTK2024S05-2
click to zoom

JTK2024S05 Details

  • Manufacturer Part Number:

    JTK2024S05

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    7

  • Additional Feature:

    SEATED HGT-CALCULATED

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-XDMA-T6

  • Length:

    25.4 mm

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    55 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    4.5 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    SQUARE

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    9.92 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    20 W

  • Trim/Adjustable Output:

    YES

  • Width:

    25.4 mm

JTK2024S05 Frequently Asked Questions (FAQs)

  • The maximum capacitance load for the JTK2024S05 is 0.1uF. Exceeding this value may affect the stability of the output voltage.
  • While the JTK2024S05 is rated for operation up to 80°C, it's recommended to derate the output power by 2.5% per degree above 60°C to ensure reliable operation.
  • The JTK2024S05 meets various safety certifications, including UL60950-1, EN60950-1, and IEC60950-1. However, it's essential to review the specific certification requirements for your application and ensure the module is used within its specified ratings.
  • To minimize electromagnetic interference (EMI) and ensure reliable operation, it's recommended to follow a multi-layer PCB layout with a solid ground plane, keep sensitive components away from the module, and use a shielded cable for the input and output connections.
  • While it's technically possible to parallel multiple JTK2024S05 modules, it's not recommended as it may lead to uneven current sharing and reduced reliability. Instead, consider using a single higher-power module or consulting with XP Power's application engineers for custom solutions.
