JTK3024S15 footprint, schematic symbol and 3D model by XP POWER

Symbol

click to zoom

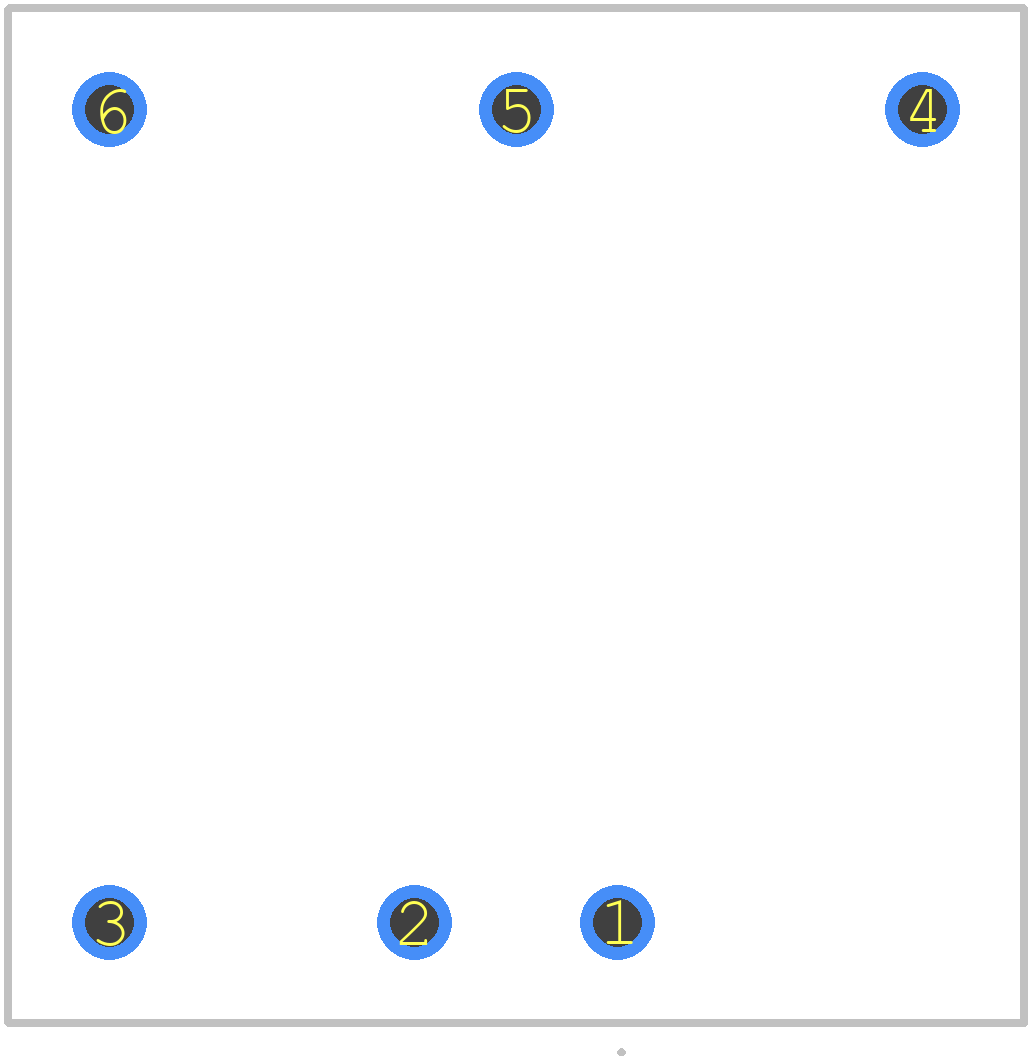

PCB Footprints

JTK3024S15 - XP POWER PCB footprint - Other - Other - JTK30

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for JTK3024S15
Part Number JTK3024S15
Manufacturer XP POWER
Pin Count 6
Part Category Power Supply
Package Category Other
Footprint Name Other - JTK30
Released Date Jun 27, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

JTK3024S15 Details

Manufacturer Part Number:
JTK3024S15
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
Module-6
ECCN Code:
EAR99
Manufacturer:
XP Power
YTEOL:
7
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
36 V
Input Voltage-Min:
9 V
Input Voltage-Nom:
24 V
JESD-30 Code:
S-XDMA-P6
Length:
25.4 mm
Load Regulation-Max:
0.5%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
6
Operating Temperature-Max:
55 °C
Operating Temperature-Min:
-40 °C
Output Voltage-Max:
16.5 V
Output Voltage-Min:
13.5 V
Output Voltage-Nom:
15 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
SQUARE
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Seated Height-Max:
11.4 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
OTHER
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
30 W
Trim/Adjustable Output:
YES
Width:
25.4 mm

JTK3024S15 Frequently Asked Questions (FAQs)

XP Power recommends a PCB layout with a large copper area for heat dissipation, and a minimum of 2oz copper thickness. A thermal via array under the module can also improve heat dissipation.
To ensure reliable start-up, XP Power recommends a soft-start circuit or a ramp-up voltage supply to the module. This helps to reduce inrush current and prevents damage to the module.
The maximum allowable capacitance on the output of the JTK3024S15 is 2200uF. Exceeding this value may cause instability or oscillation in the converter.
Yes, the JTK3024S15 can be used in a redundant configuration. However, XP Power recommends using a diode orifice or a redundancy module to ensure seamless switchover between modules in case of a failure.
XP Power recommends a fuse rating of 5A to 10A, depending on the input voltage and current requirements of the application.

Trust Checks

Expert Contribution

System Verified

Community Approved

JTK3024S15 Overview

Use the download button to access the JTK3024S15 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like JTK30, or try a keyword search, such as Power Supply Modules
