JTK3048S12 - XP POWER

Description: XP Power Through Hole 30W Isolated DC-DC Converter, Vin 18 → 75 V dc, I/O isolation 1.6 (Minimum)kV dc

Download JTK3048S12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
JTK3048S12 - XP POWER - PCB symbol
click to zoom
PCB Footprints

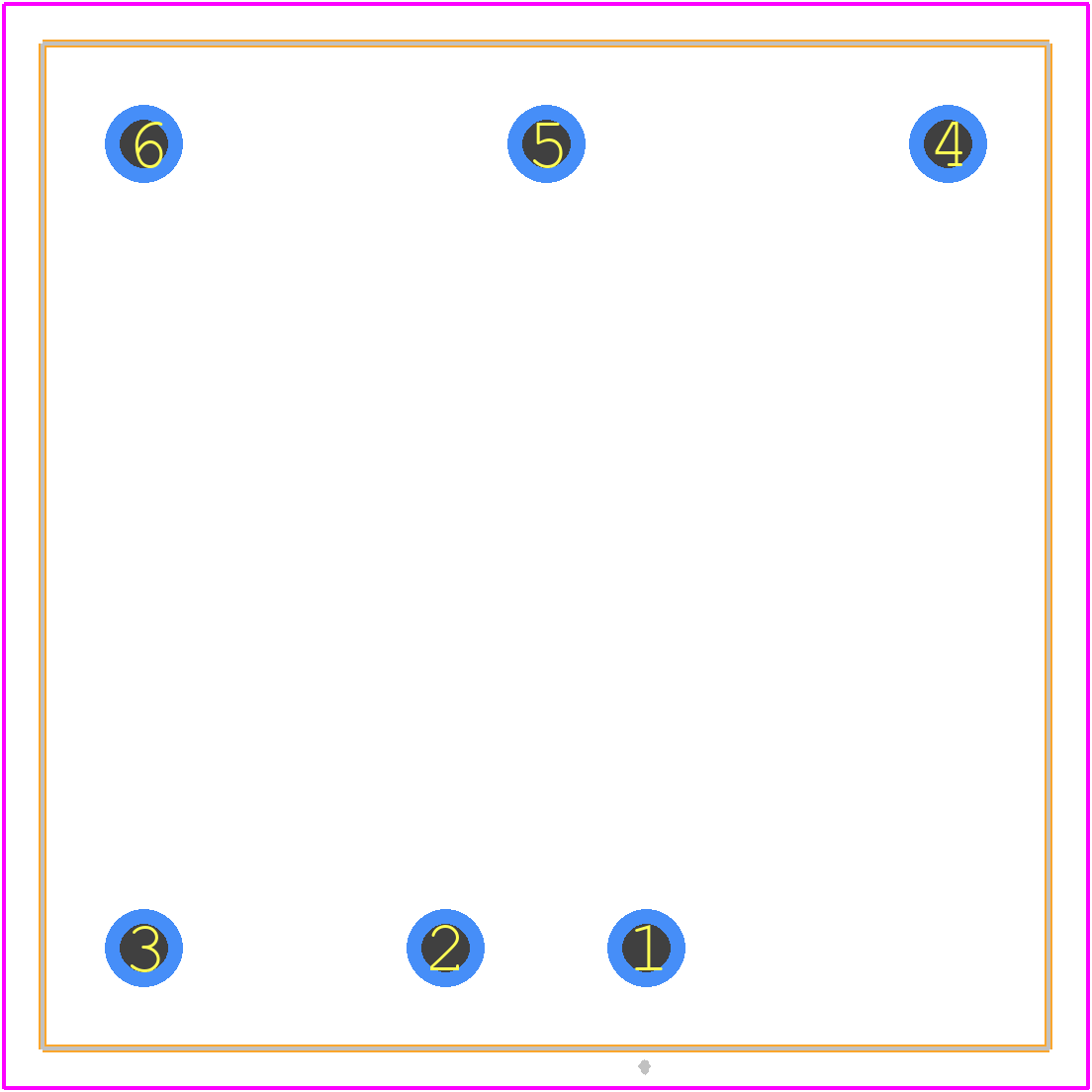

JTK3048S12 - XP POWER PCB footprint - Other - Other - JTK3048S12-2
click to zoom
3D Models
JTK3048S12 - XP POWER - 3D model - Other - JTK3048S12-2
click to zoom

JTK3048S12 Details

  • Manufacturer Part Number:

    JTK3048S12

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    Module-6

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    7.7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    75 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    48 V

  • JESD-30 Code:

    S-XDMA-P6

  • Length:

    25.4 mm

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    55 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    10.8 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    SQUARE

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    11.4 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    30 W

  • Trim/Adjustable Output:

    YES

  • Width:

    25.4 mm

JTK3048S12 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the JTK3048S12 is -40°C to +85°C, with a derating of 2.5% per °C above 60°C.
  • To ensure reliability in high-vibration environments, it is recommended to follow XP Power's guidelines for mounting and securing the module, and to consider using additional mechanical support or vibration dampening measures if necessary.
  • The recommended input fuse rating for the JTK3048S12 is 5A slow-blow, but this may vary depending on the specific application and input voltage. Consult XP Power's application notes for more information.
  • Yes, the JTK3048S12 can be used in a redundant configuration, but it is recommended to consult XP Power's application notes and to carefully consider the system design and fault tolerance requirements.
  • The typical efficiency of the JTK3048S12 is around 88-92% depending on the input voltage and output load, but this may vary depending on the specific application and operating conditions.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

JTK3048S12 Overview

Use the download button to access the JTK3048S12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JTK30, or try a keyword search, such as Power Supply Modules
